core products

Dali Device

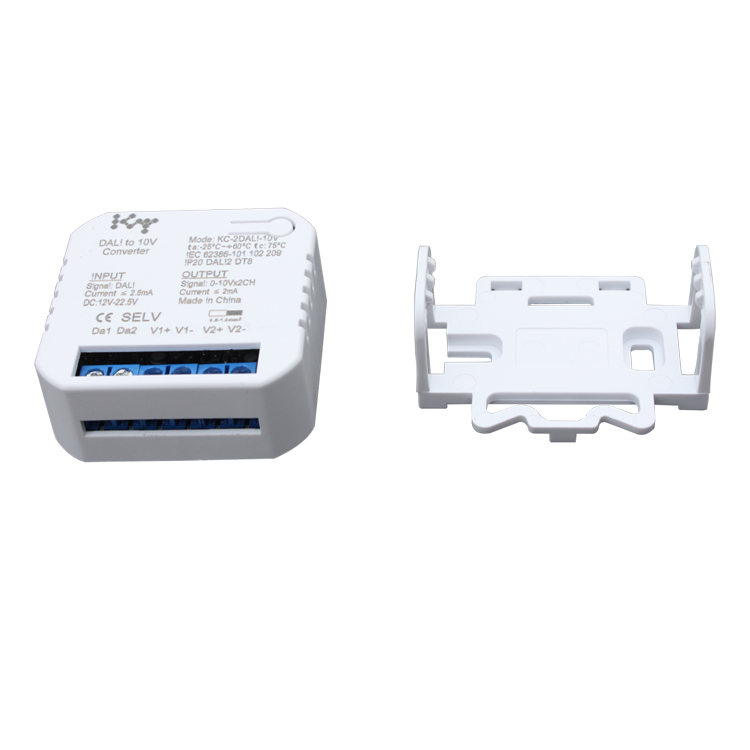

  • KC-2DALI-10V

    Dimming Signal：DALI DT8 to 0-10V signal Converter

    U-in：DC 15-17V

    U-out：DC 15-17V

    I-out：2mA*2CH

    U-Power：No

    Dimensions: 50x50x20mm

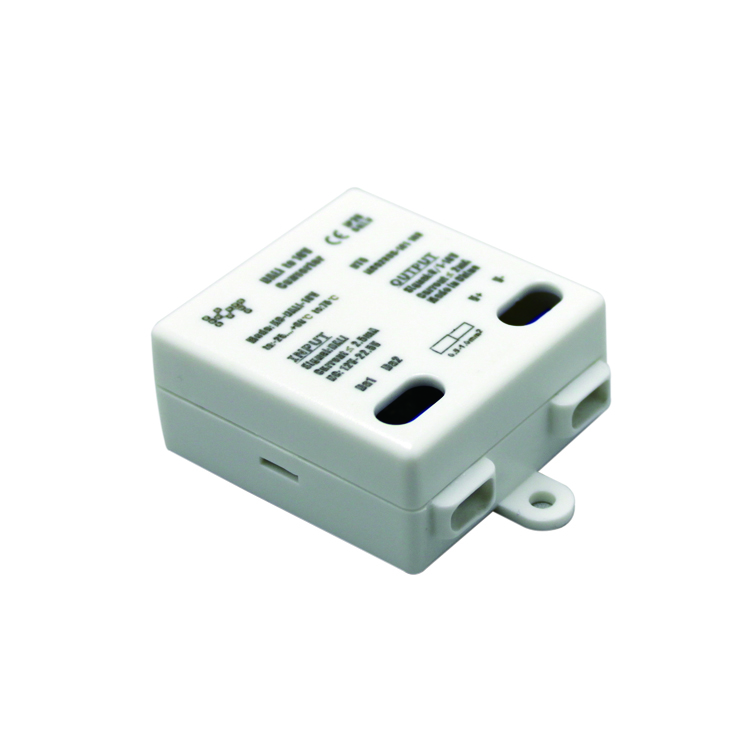

  • KC-DALI-10V

    Dimming Signal：DALI to 0/1-10V signal Converter

    U-in：DC 15-17V

    U-out：DC 15-17V

    I-out：2mA

    U-Power：No

    Dimensions: 57x40x20.5mm

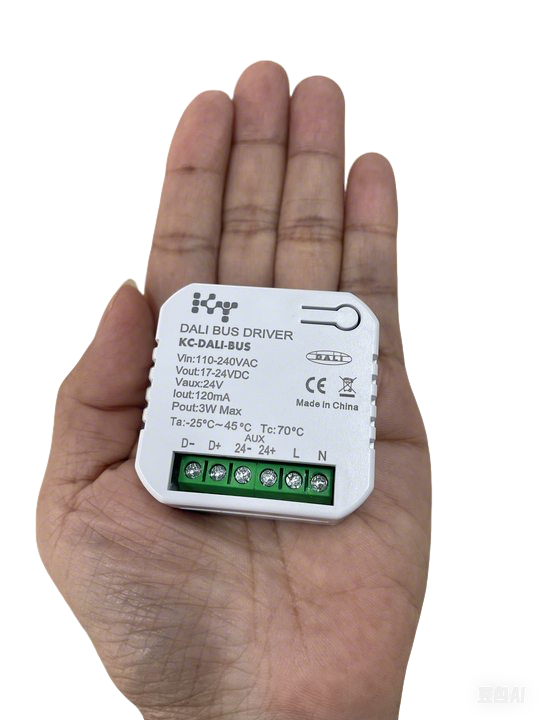

  • KC-DALI-BUS

    Dimming Signal：DALI BUS DRIVER

    U-in：DC17V-24V

    U-out：DC17V-24V + AUX24V

    I-out：120mA Power supply capacity

    U-Power：Max 3W

    Dimensions: 45x45x20mm

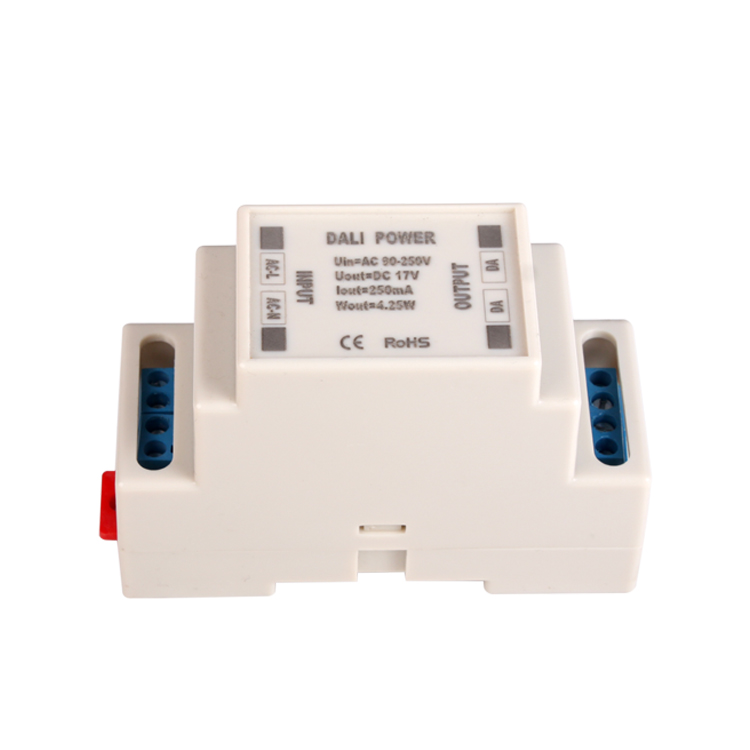

  • KC-DALI-POWER

    Dimming Signal：DALI BUS Power

    U-in：DC17V

    U-out：DC17V

    I-out：250mA Power supply capacity

    U-Power：Max 5W

    Dimensions: 88x37x59mm

  • KC-DALI-3DT6

    Dimming Signal：3CH DALI DECODER

    U-in：DC12-24V

    U-out：DC12-24V

    I-out：2.6A x 3CH

    U-Power：Max 180W/24V

    Dimensions: 112x37x20mm

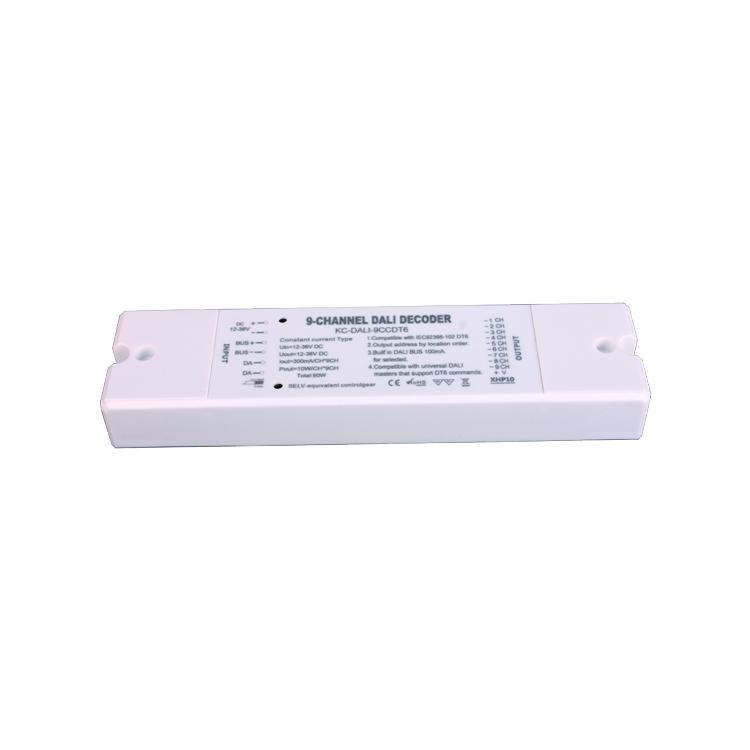

  • KC-DALI-9CCTD6

    Dimming Signal：9CH Address DALI DECODER

    U-in：DC36V

    U-out：DC36V

    I-out：180mA

    U-Power：Max 38W

    Dimensions: 112x37x20mm

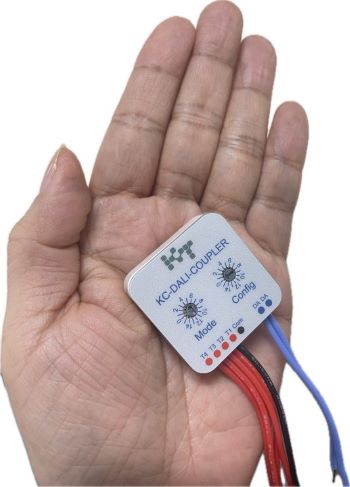

  • KC-DALI-COUPLER

    Dimming Signal：DALI

    U-in：1-4 push buttons

    U-out：DALI Signal

    I-out：

    U-Power：

    Dimensions: 33.7x33.7x10.6mm

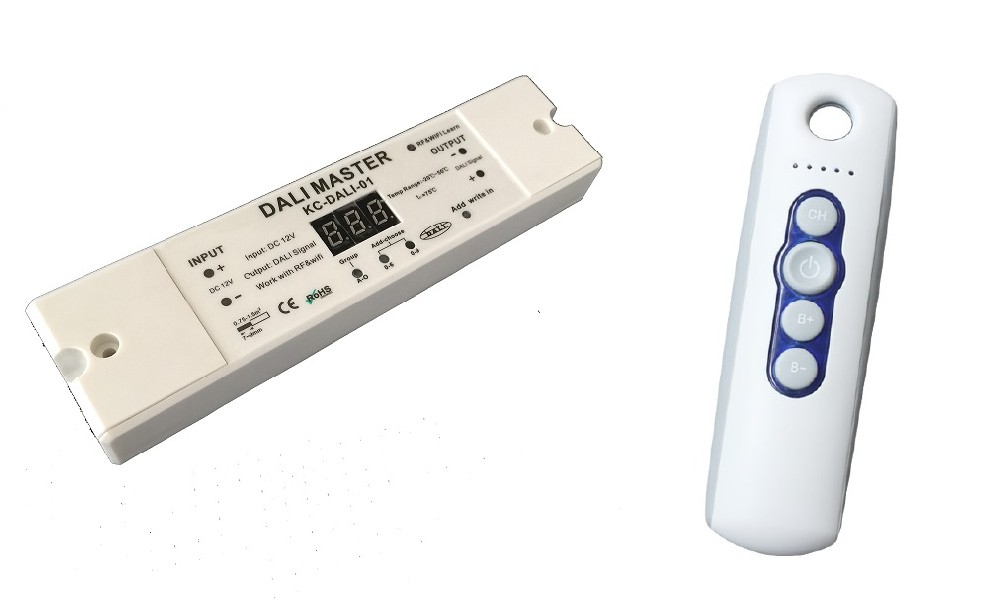

  • KC-DALI-01

    Dimming Signal：dali signal

    U-in：DC12V

    U-out：DC12V

    I-out：

    U-Power：

    Dimensions: 134x42x20

Dali Dimmable Driver -CC

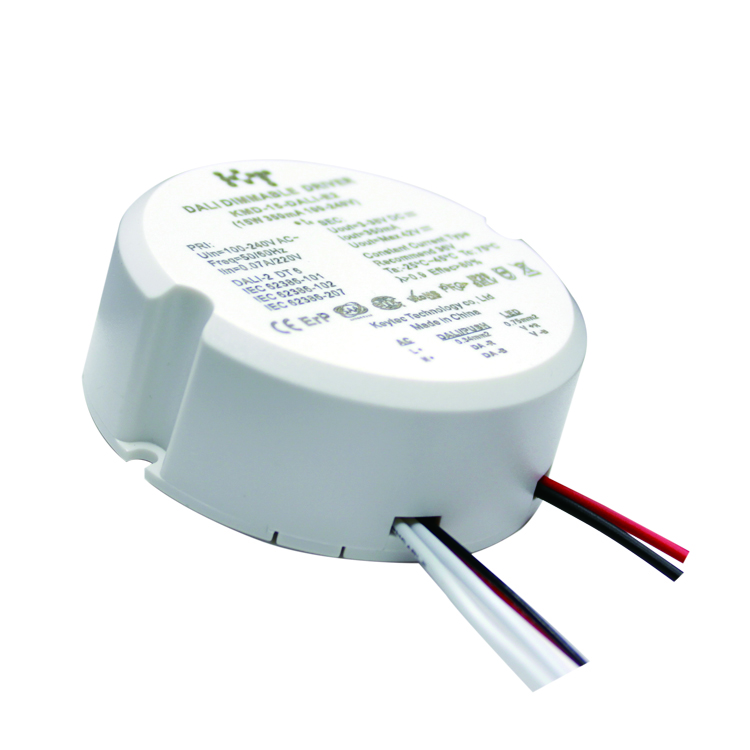

  • KMD-12-DALI-E6

    Dimming Signal：DALI2 DT6

    U-in：AC100-2277V

    U-out：DC3-38V

    I-out：320mA

    U-Power：Max 12W

    Dimensions: D47x23mm

  • KMD-10-2DALI-E4

    Dimming Signal：DALI2 DT8

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：250mA/2CH

    U-Power：Max 10W/2CH

    Dimensions: 121x30x20mm

  • KMD-10-DALI-E4

    Dimming Signal：DALI2 DT6 & PUSH

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：250mA

    U-Power：Max 10W

    Dimensions: 121x30x20mm

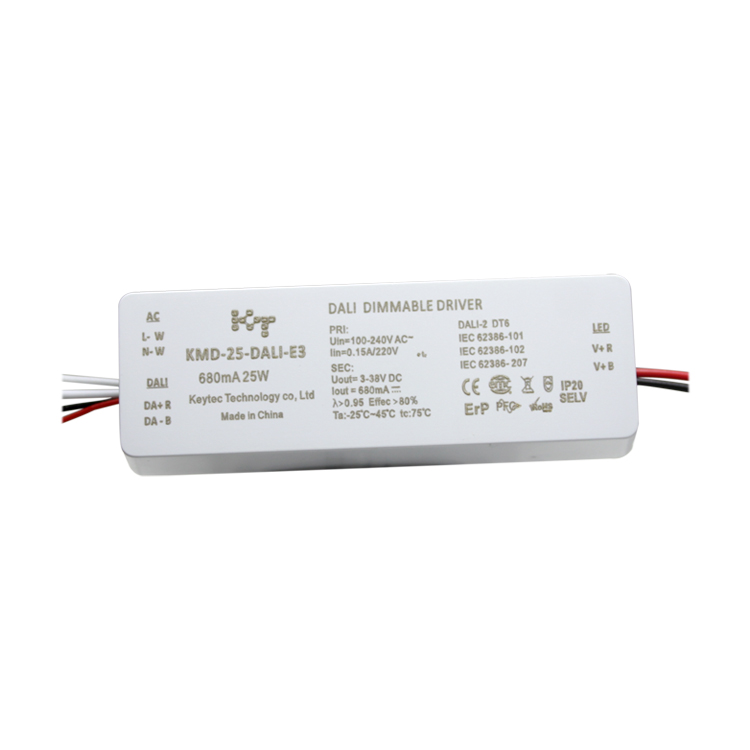

  • KMD-25-DALI-E3

    Dimming Signal：DALI2 DT6 & PUSH

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：650mA

    U-Power：Max 25W

    Dimensions: 100x32x20mm

  • KMD-72160-DALI-E4

    Dimming Signal：DALI2 DT6

    U-in：AC220-240V

    U-out：DC50-72V

    I-out：160mA

    U-Power：Max 12W

    Dimensions: 121x30x20mm

  • KMD-15-2DALI-E4

    Dimming Signal：DALI2 DT8

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA/2CH

    U-Power：Max 15W/2CH

    Dimensions: 121x30x20mm

  • KMD-10-2DALI-E4

    Dimming Signal：DALI2 DT8

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：250mA/2CH

    U-Power：Max 10W/2CH

    Dimensions: 121x30x20mm

  • KMD-120270-DALI-E4

    Dimming Signal：DALI2 DT6 & PUSH

    U-in：AC220-240V

    U-out：DC100-120V

    I-out：270mA

    U-Power：Max 32W

    Dimensions: 121x30x20mm

Dali Dimmable Driver-CV

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A

    U-Power：Max 20W

    Dimensions: 121x30x20mm

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A/2CH

    U-Power：Max 20W/2CH

    Dimensions: 121x30x20mm

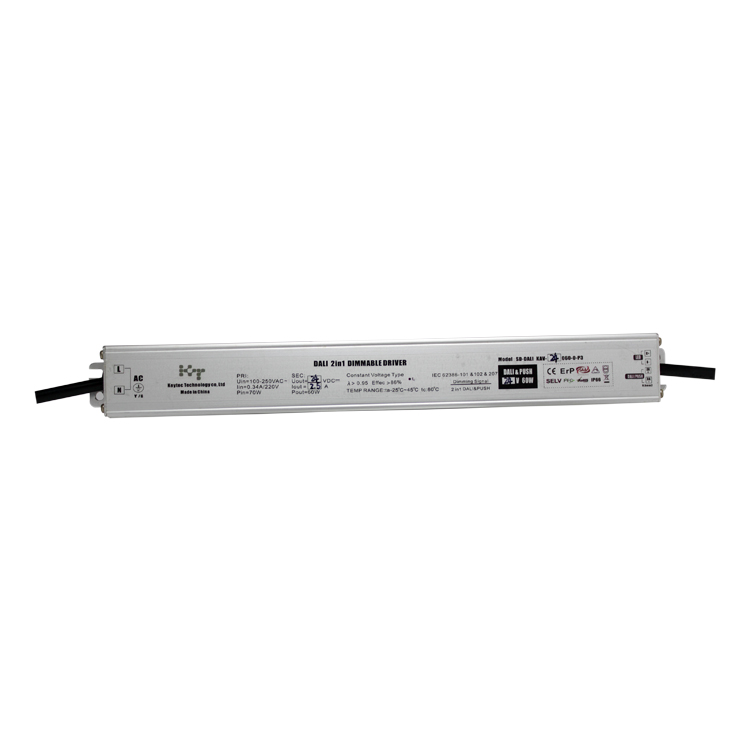

  • SD-DALI KAV-12060-O-P7

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC12V

    I-out：0-5A

    U-Power：Max 60W

    Dimensions: 292x37x22mm

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A

    U-Power：Max 20W

    Dimensions: 121x30x20mm

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A/2CH

    U-Power：Max 20W/2CH

    Dimensions: 121x30x20mm

  • SD-DALI KAV-12060-O-P7

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC12V

    I-out：0-5A

    U-Power：Max 60W

    Dimensions: 292x37x22mm

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A/2CH

    U-Power：Max 20W/2CH

    Dimensions: 121x30x20mm

  • SD-DALI KAV-24020-I-E4

    Dimming Signal：DALI 2 DT6

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-0.8A

    U-Power：Max 20W

    Dimensions: 121x30x20mm

0-10V 3 in1 Dimmable Driver

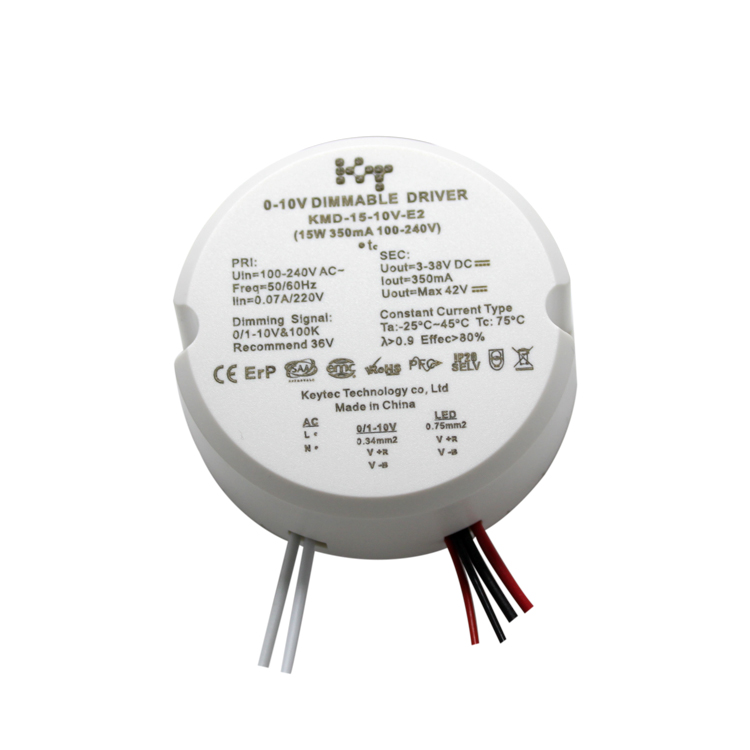

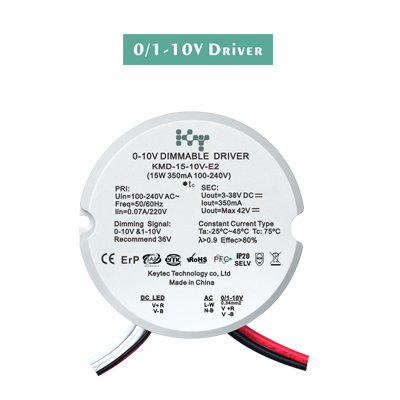

  • KMD-15-10V-E2

    Dimming Signal：0/1-10V/PWM

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

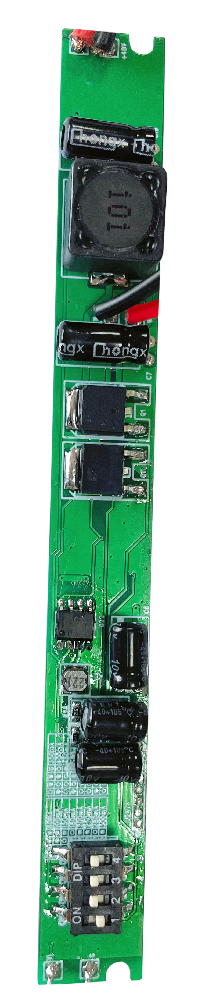

  • KTM-80-700-10V

    Dimming Signal：0-10V

    U-in：DC48V

    U-out：DC3-42V

    I-out：80~700mA/DIP

    U-Power：Max 30W

    Dimensions: 125x13.5x10mm

  • KTM-80-700-10V

    Dimming Signal：0-10V

    U-in：DC48V

    U-out：DC3-42V

    I-out：80~700mA/DIP

    U-Power：Max 30W

    Dimensions: 125x13.5x10mm

  • KMD-15-10V-E2

    Dimming Signal：0/1-10V/PWM

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

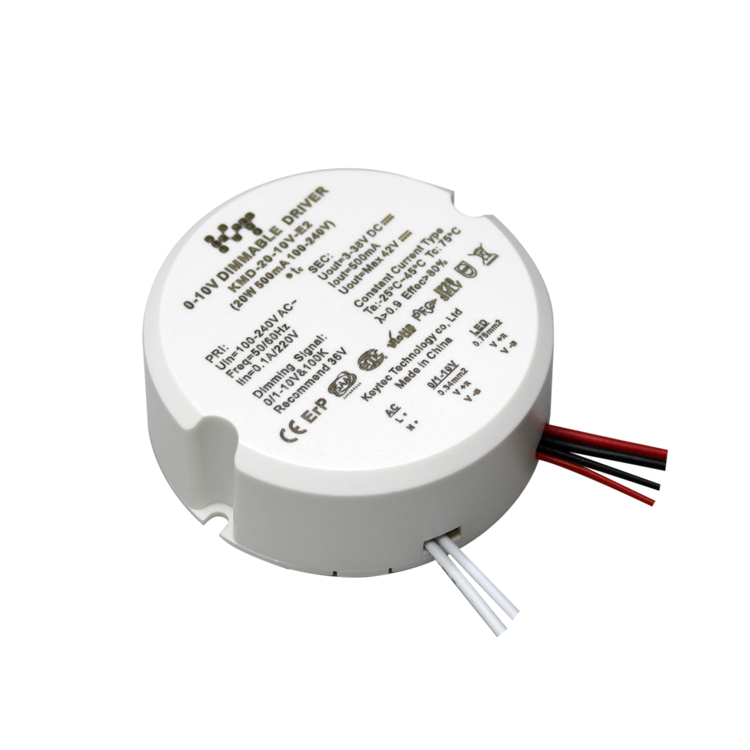

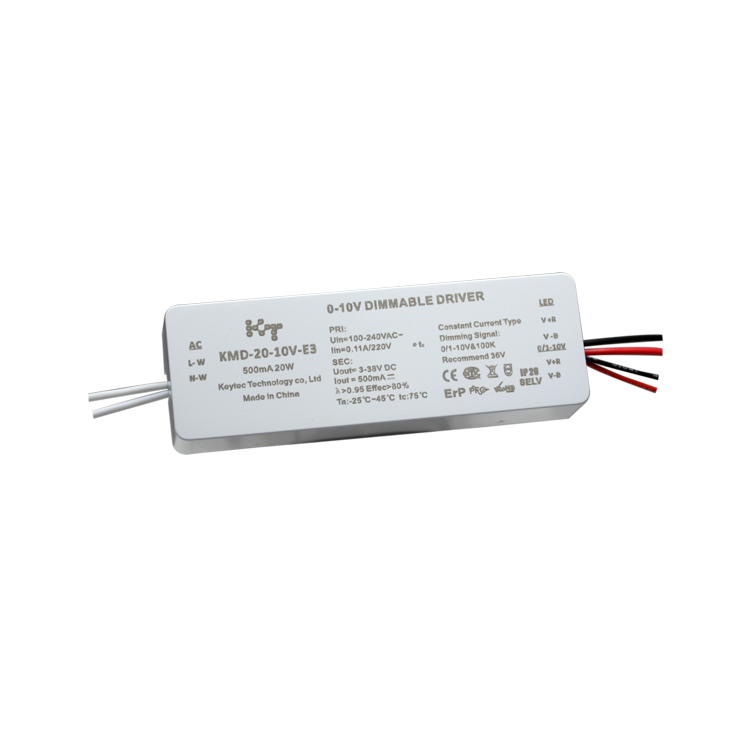

  • KMD-20-10V-E2

    Dimming Signal：0/1-10V

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：500mA

    U-Power：Max 20W

    Dimensions: D65*25mm

  • KMD-20-10V-E2

    Dimming Signal：0/1-10V

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：500mA

    U-Power：Max 20W

    Dimensions: D65*25mm

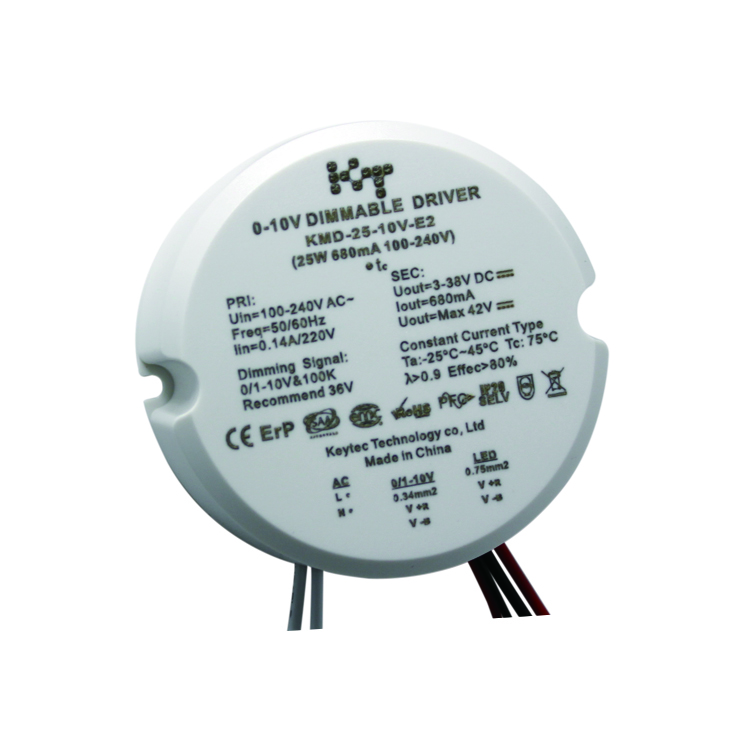

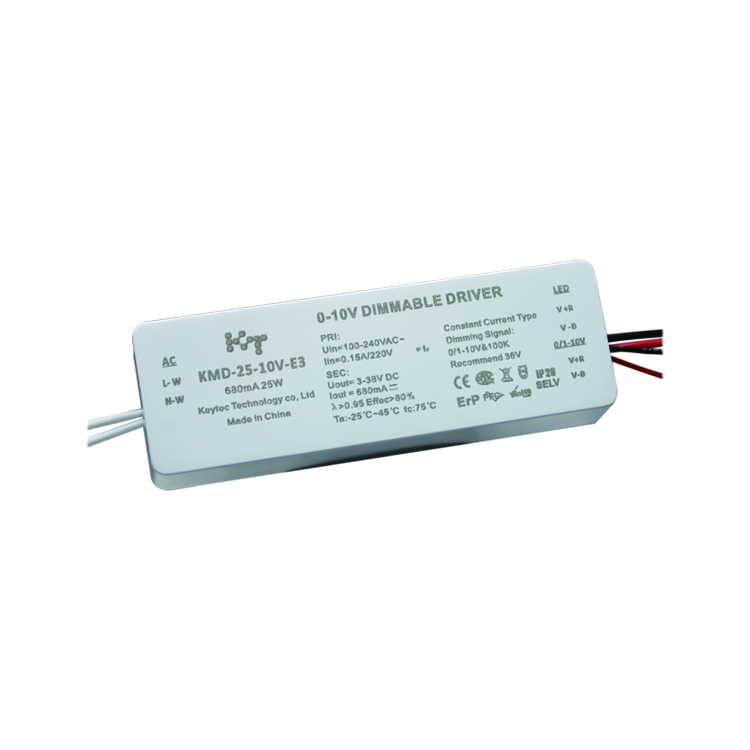

  • KMD-25-10V-E2

    Dimming Signal：0/1-10V/PWM

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：630mA

    U-Power：Max 25W

    Dimensions: D65*25mm

  • KMD-25-10V-E2

    Dimming Signal：0/1-10V/PWM

    U-in：AC100-240V

    U-out：DC3-36V

    I-out：630mA

    U-Power：Max 25W

    Dimensions: D65*25mm

Triac Dimmable Driver

  • KMD-50450-TRIAC-E4

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC20-50V

    I-out：450mA

    U-Power：Max 23W

    Dimensions: 121x30x20mm

  • KMD-15-TRIAC-E2

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC24-36V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*23mm

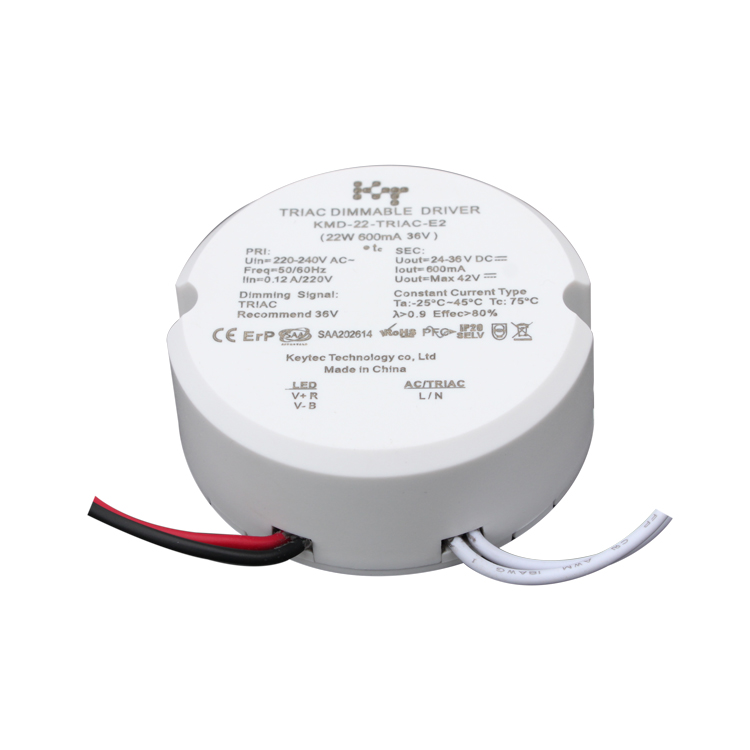

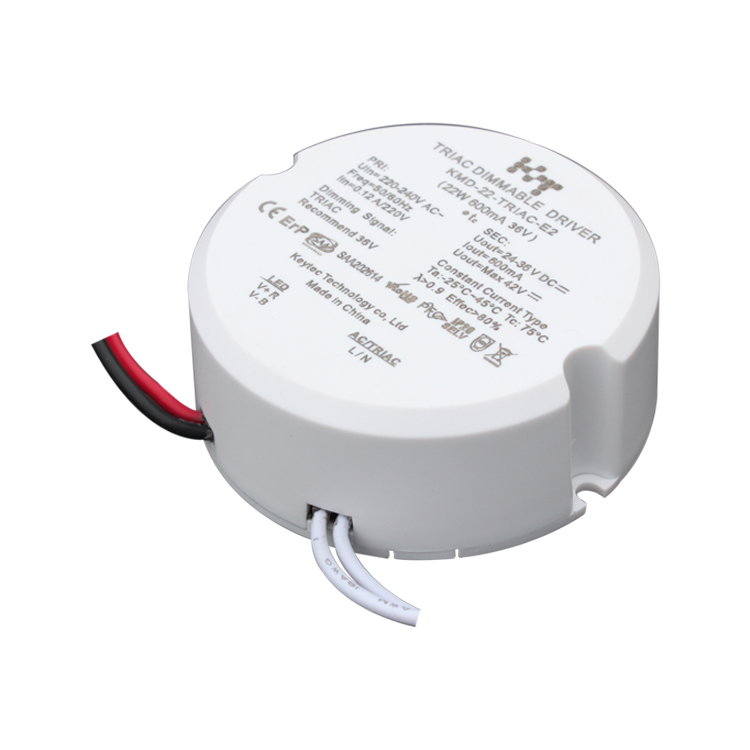

  • KMD-22-TRIAC-E2

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC24-36V

    I-out：600mA

    U-Power：Max 22W

    Dimensions: D65*23mm

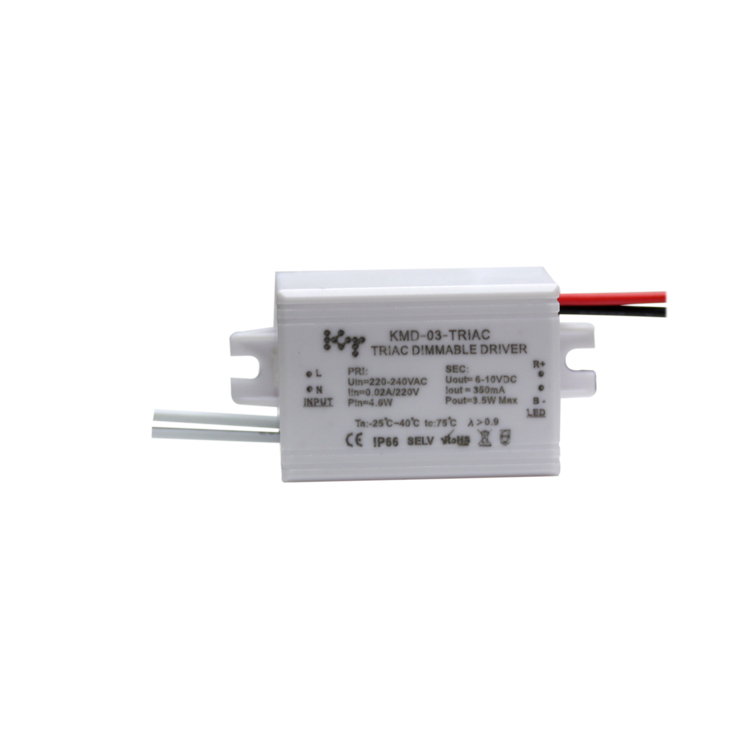

  • KMD-03-TRIAC-E2

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC24-36V

    I-out：75mA

    U-Power：Max 03W

    Dimensions: D65*25mm

  • KMD-10-TRIAC-E4

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC15-30V

    I-out：350mA

    U-Power：Max 10W

    Dimensions: 121x30x20mm

  • KMD-12-TRIAC-E2

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC24-40V

    I-out：300mA

    U-Power：Max 12W

    Dimensions: D65*23mm

  • KMD-15-TRIAC-E4

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC15-30V

    I-out：500mA

    U-Power：Max 15W

    Dimensions: 121x30x20mm

  • KMD-18-TRIAC-E4

    Dimming Signal：TRIAC

    U-in：AC 220-240V

    U-out：DC15-30V

    I-out：600mA

    U-Power：Max 18W

    Dimensions: 121x30x20mm

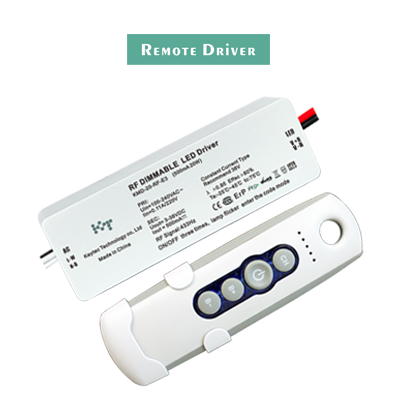

RF Dimmable Driver & Decoder

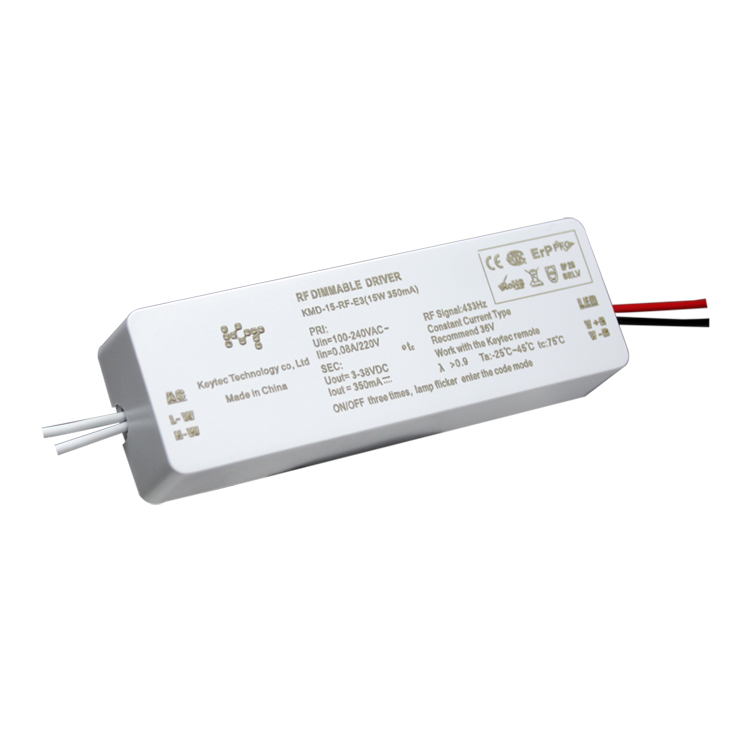

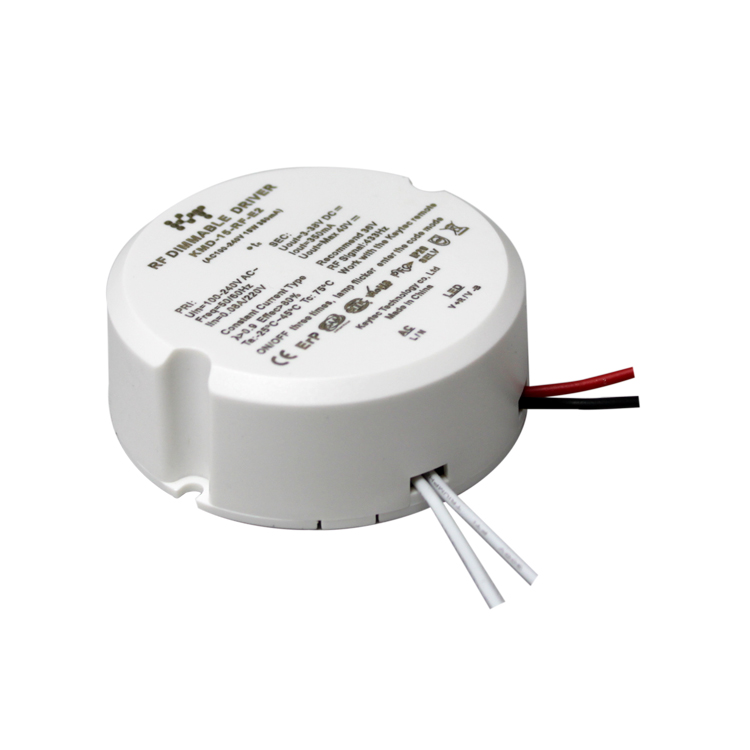

  • KMD-15-RF-E2

    Dimming Signal：RF 433HZ

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

  • KMD-15-RF-E2

    Dimming Signal：RF 433HZ

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

  • KMD-15-RF-E2

    Dimming Signal：RF 433HZ

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

  • KMD-15-RF-E2

    Dimming Signal：RF 433HZ

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

  • KMD-15-RF-E2

    Dimming Signal：RF 433HZ

    U-in：AC100-240V

    U-out：DC3-38V

    I-out：350mA

    U-Power：Max 15W

    Dimensions: D65*25mm

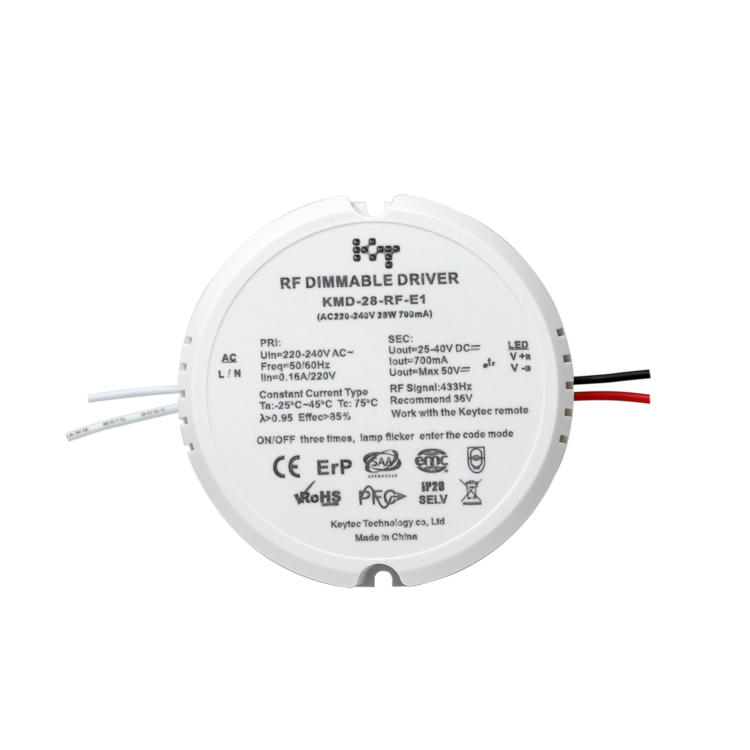

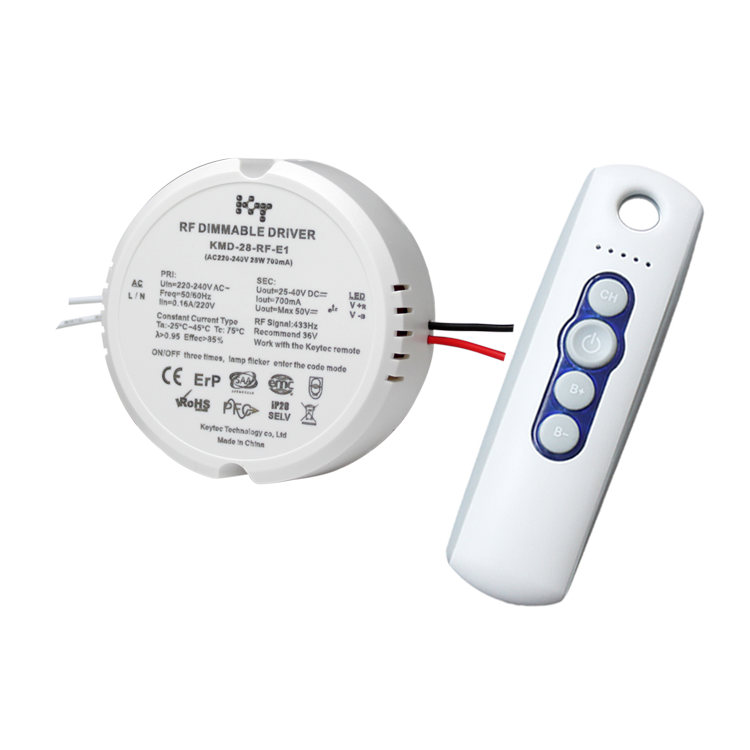

  • KMD-28-RF-E1 220V

    Dimming Signal：RF 433HZ

    U-in：AC 220-240V

    U-out：DC25-40V

    I-out：700mA

    U-Power：Max 28W

    Dimensions: D75*25mm

  • KMD-28-RF-E1 220V

    Dimming Signal：RF 433HZ

    U-in：AC 220-240V

    U-out：DC25-40V

    I-out：700mA

    U-Power：Max 28W

    Dimensions: D75*25mm

  • KMD-28-RF-E1 220V

    Dimming Signal：RF 433HZ

    U-in：AC 220-240V

    U-out：DC25-40V

    I-out：700mA

    U-Power：Max 28W

    Dimensions: D75*25mm

Mini LED Driver

  • KAV-05015-O-W

    Dimming Signal：No dimming

    U-in：AC100-277V

    U-out：5DC

    I-out：0-3.0A

    U-Power：Max 15W

    Dimensions: 53x28x20mm

  • KAV-12075-I-P1

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：12VDC

    I-out：0-6.25A

    U-Power：Max 75W

    Dimensions: 334x34x22.5mm

  • KAV-12075-I-P1

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：12VDC

    I-out：0-6.25A

    U-Power：Max 75W

    Dimensions: 334x34x22.5mm

  • KAV-24075-I-P1

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：24VDC

    I-out：0-6.15A

    U-Power：Max 75W

    Dimensions: 334x34x22.5mm

  • KAV-24075-I-P1

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：24VDC

    I-out：0-6.15A

    U-Power：Max 75W

    Dimensions: 334x34x22.5mm

  • KAV-12075-I-P1

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：12VDC

    I-out：0-6.25A

    U-Power：Max 75W

    Dimensions: 334x34x22.5mm

  • KAI-60400-I-E6

    Dimming Signal：No dimming

    U-in：AC220-240V

    U-out：30-60VDC

    I-out：400mA

    U-Power：Max 24W

    Dimensions: D55X22mm

  • KAI-80290-I-E6

    Dimming Signal：No dimming

    U-in：AC220-240V

    U-out：40-80VDC

    I-out：290mA

    U-Power：Max 24W

    Dimensions: D55X22mm

DMX Products

  • KC-36/350mA-KEY

    Dimming Signal：DMX

    U-in：DC12-36V

    U-out：DC12-36V

    I-out：350mAx3CH

    U-Power：Max 75w

    Dimensions: 205x45x24

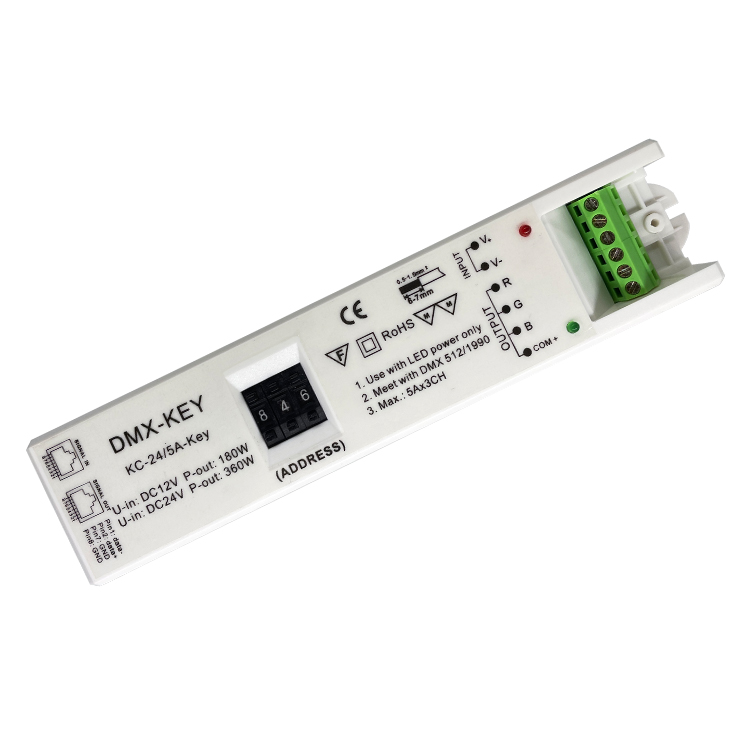

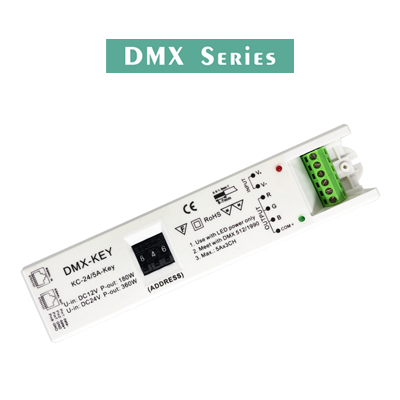

  • KC-24/5A-KEY

    Dimming Signal：DMX

    U-in：DC12-24V

    U-out：DC12-24V

    I-out：5Ax3CH

    U-Power：180W/12V 360W/24V

    Dimensions: 205x45x24

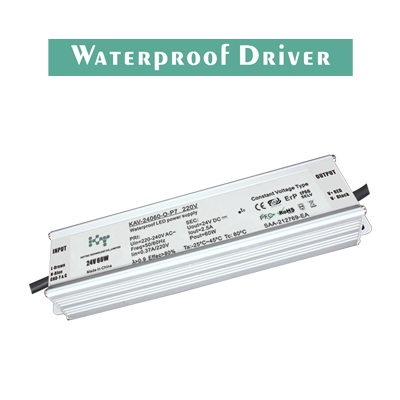

Waterproof LED Driver

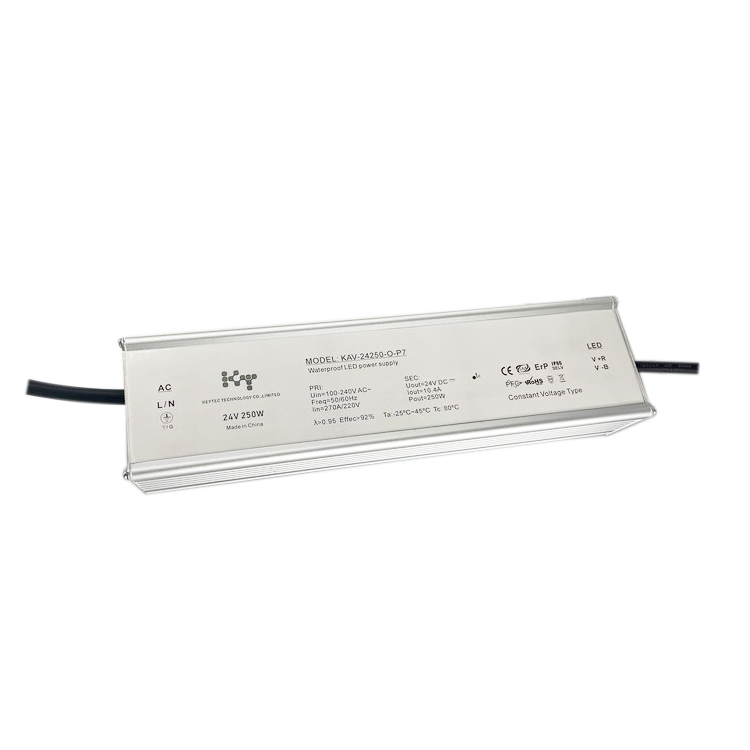

  • KAV-24250-O-P7

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：DC24V

    I-out：0-12.5A

    U-Power：Max 250W

    Dimensions: 290x73x45mm

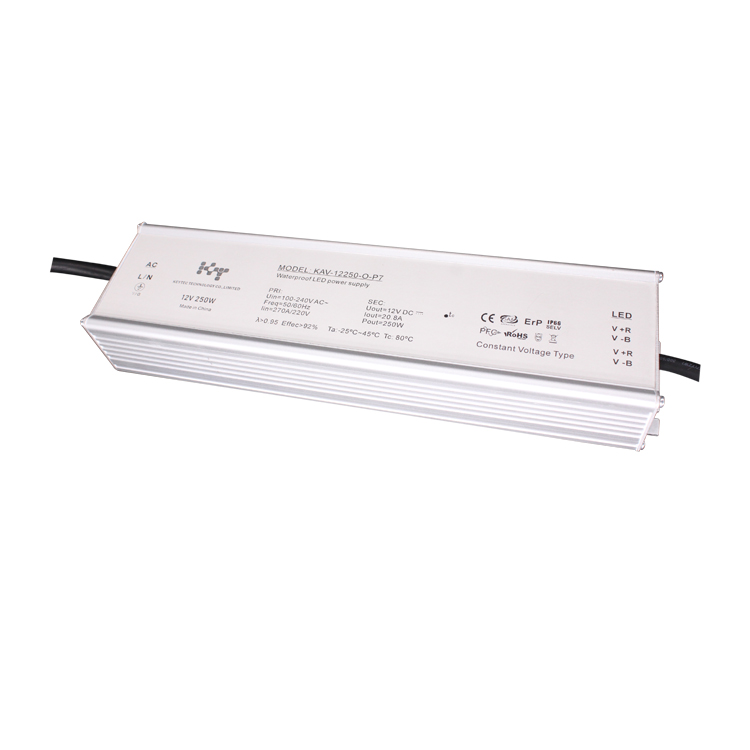

  • KAV-12250-O-P7

    Dimming Signal：No dimming

    U-in：AC100-240V

    U-out：DC12V

    I-out：0-25A

    U-Power：Max 250W

    Dimensions: 290x73x45mm

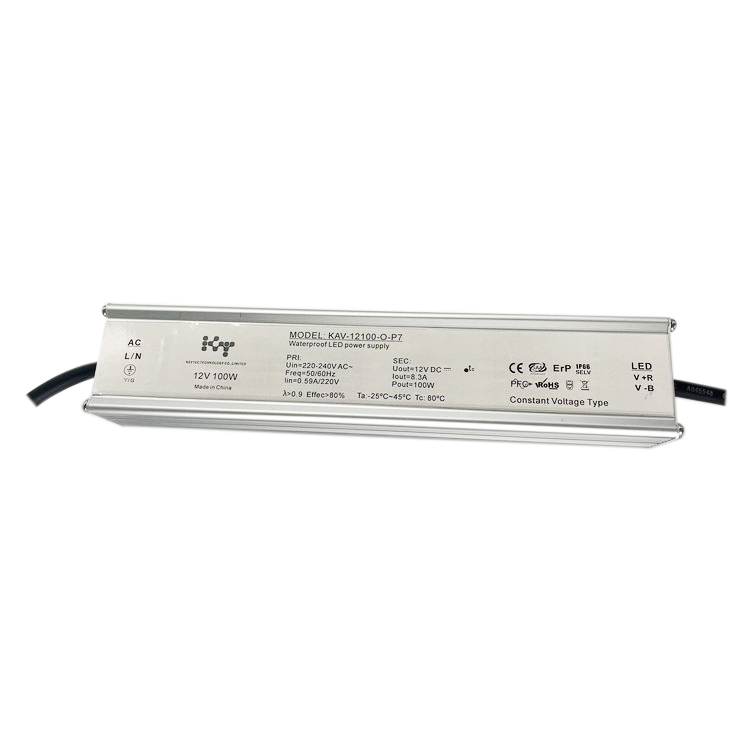

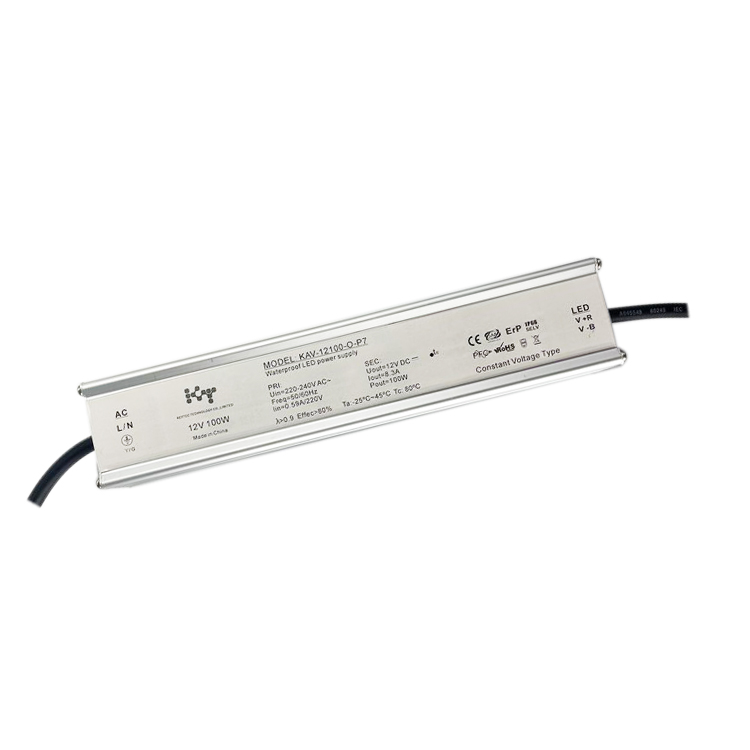

  • KAV-12100-O-P7

    Dimming Signal：No dimming

    U-in：AC 100-240V

    U-out：DC24V

    I-out：0-8.3A

    U-Power：Max 100W

    Dimensions: 246x46x32mm

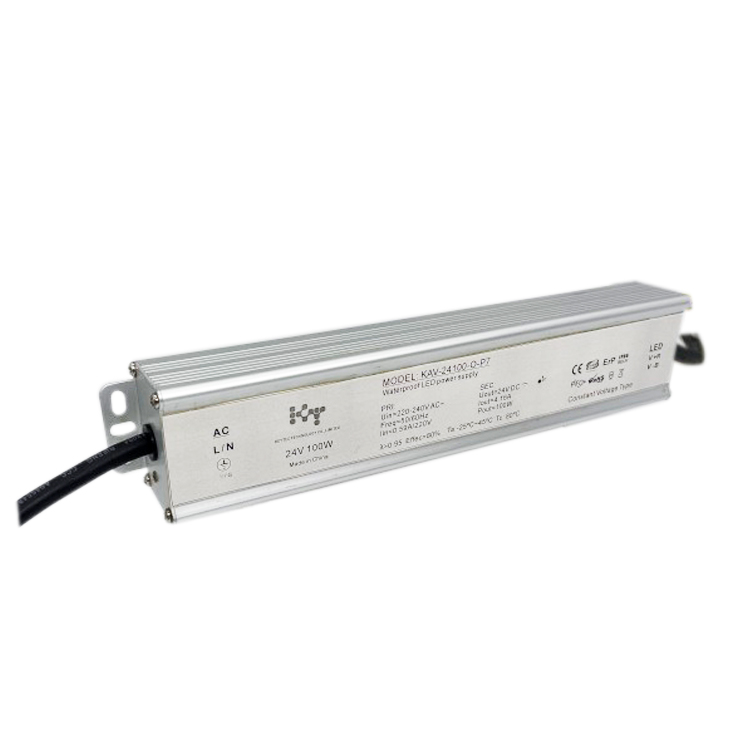

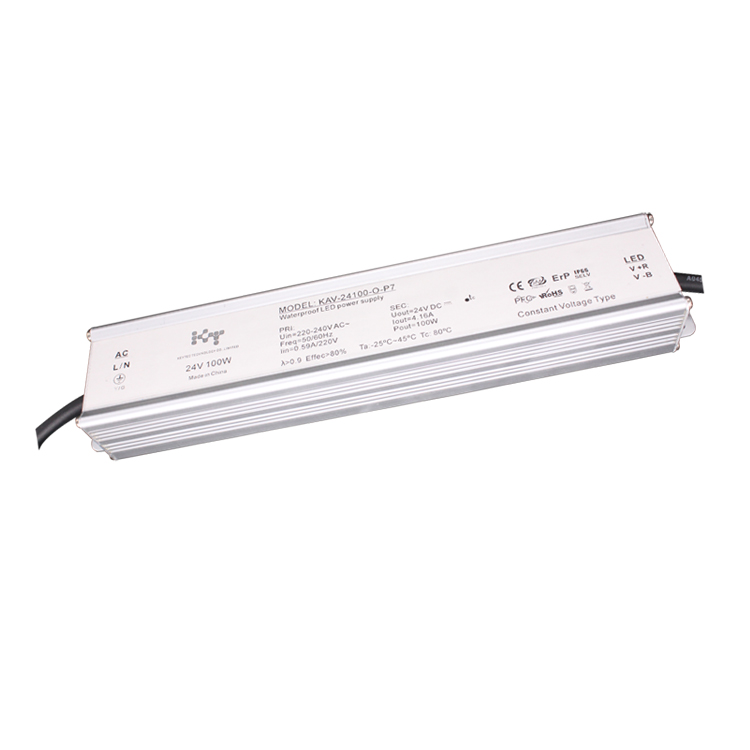

  • KAV-24100-O-P7

    Dimming Signal：No dimming

    U-in：AC 100-240V

    U-out：DC24V

    I-out：0-4.15A

    U-Power：Max 100W

    Dimensions: 246x46x32mm

  • KAV-24100-O-P7 220V

    Dimming Signal：No dimming

    U-in：AC 170-250V

    U-out：DC24V

    I-out：0-4.15A

    U-Power：Max 100W

    Dimensions: 246x46x32mm

  • KAV-12100-O-P7 220V

    Dimming Signal：No dimming

    U-in：AC 170-250V 220V

    U-out：DC12V

    I-out：0-8.3A

    U-Power：Max 100W

    Dimensions: 246x46x32mm

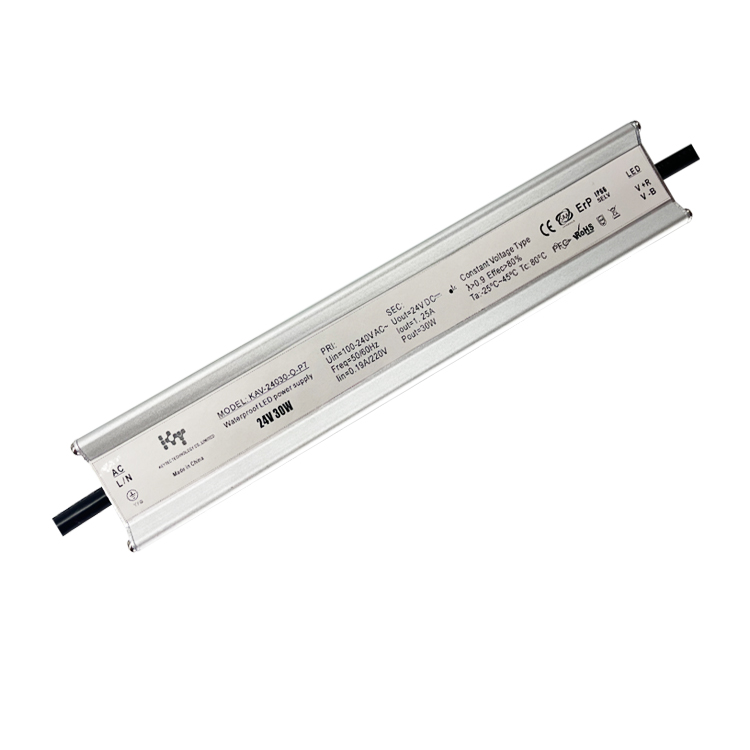

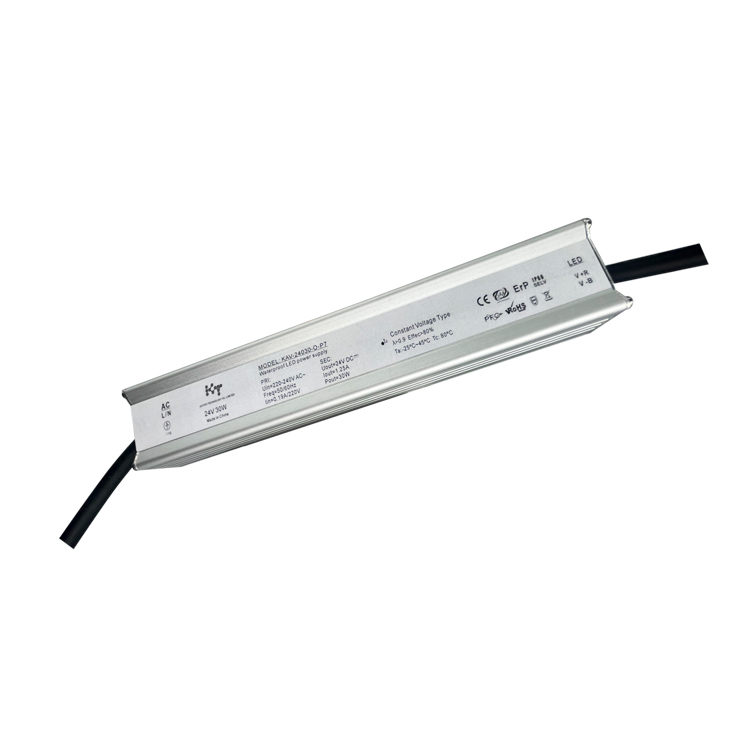

  • KAV-24030-O-P7 220V

    Dimming Signal：No dimming

    U-in：AC170-250V

    U-out：DC24V

    I-out：0-1.25A

    U-Power：Max 30W

    Dimensions: 200x34x25mm

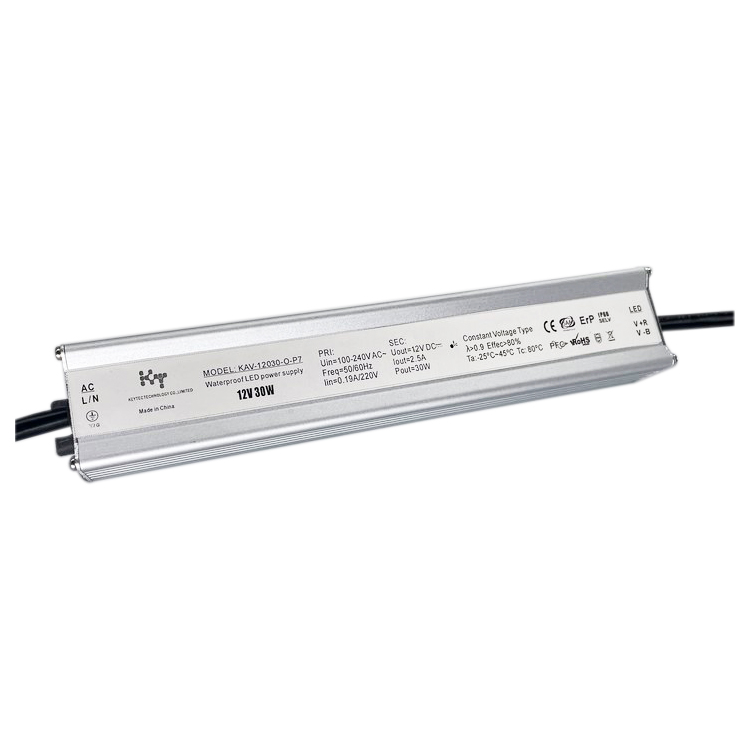

  • KAV-12030-O-P7 220V

    Dimming Signal：No dimming

    U-in：AC170-250V

    U-out：DC12V

    I-out：0-2.5A

    U-Power：Max 30W

    Dimensions: 200x34x25mm

Multiple Current Series

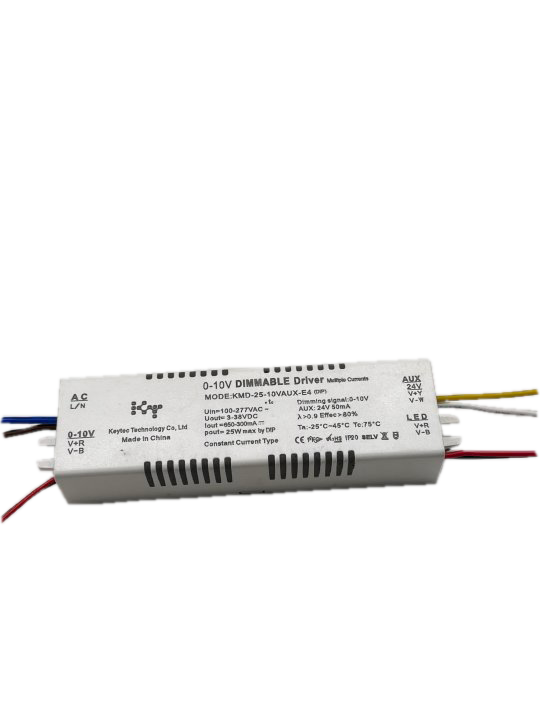

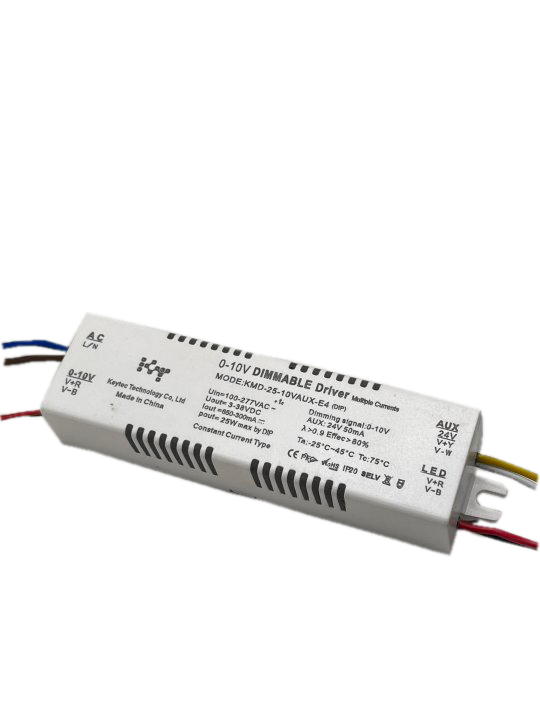

  • KMD-25-10V-E4 DIP

    Dimming Signal：0-10V/1-10V/PWM

    U-in：AC100-277V

    U-out：DC3-38V

    I-out：300-650mA

    U-Power：Max 25W

    Dimensions: 121x30x20mm

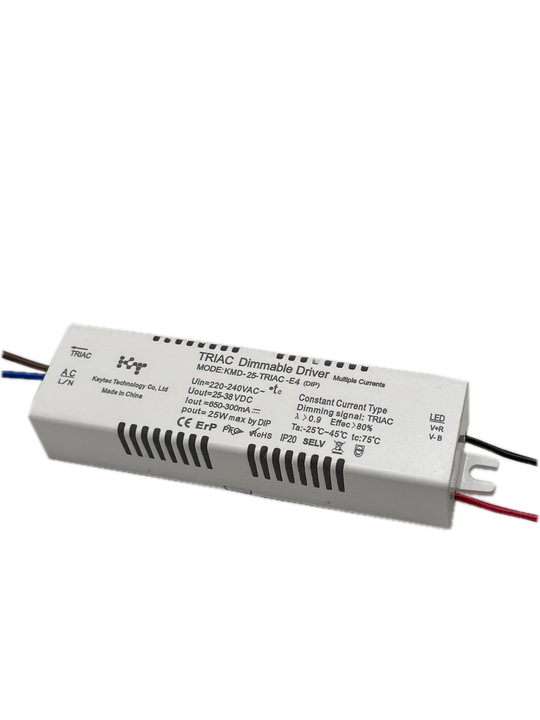

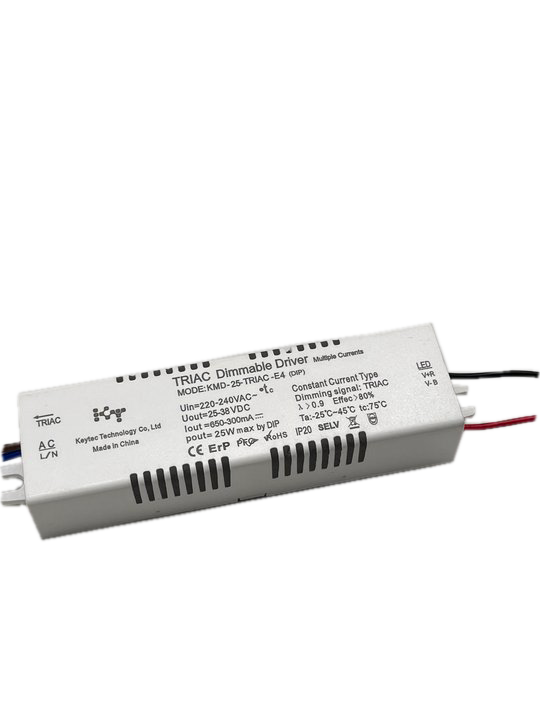

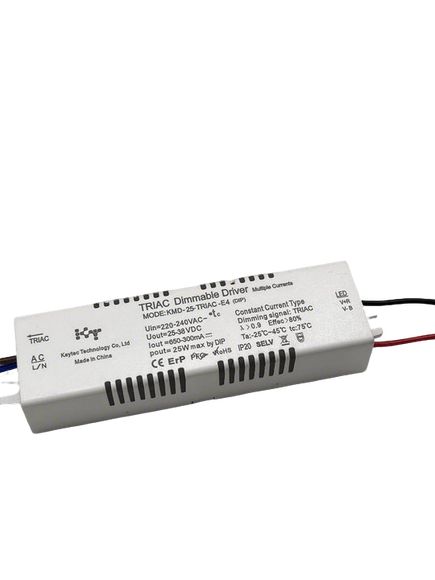

  • KMD-25-TRIAC-E4 DIP

    Dimming Signal：TRIAC

    U-in：AC220-240V

    U-out：DC3-38V

    I-out：300-650mA

    U-Power：Max 25W

    Dimensions: 121x30x20mm

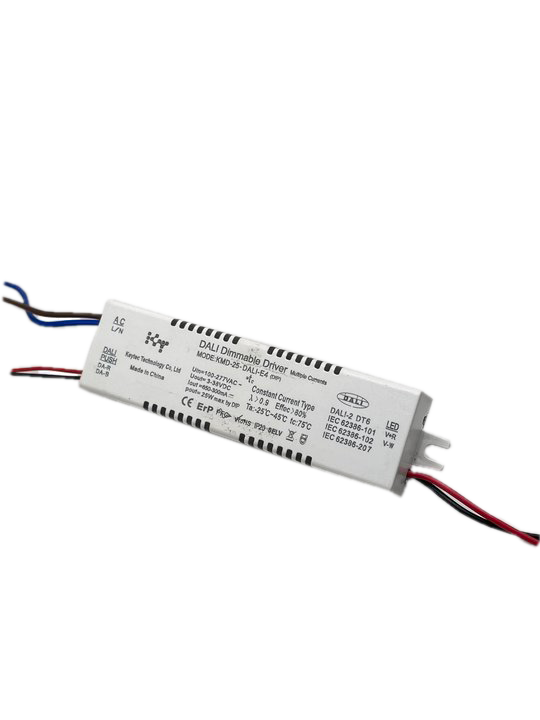

  • KMD-25-DALI-E4 DIP

    Dimming Signal：Dali push D4I

    U-in：AC100-277V

    U-out：DC3-38V

    I-out：300-650mA

    U-Power：Max 25W

    Dimensions: 121x30x20mm

find more

our core technology

The realisation and creation of our core technologies originated in 2006

Founded in 2006, KEYTEC has been focusing on technology, research, development and innovation.

In 2008, with the first touch-type wireless RGB dimmer independently developed, it obtained the national patent certificate, and had the honour of winning the DESIGN PLUS Award in 2008 at the LIGHT+BUILDING Exhibition competition held in Frankfurt the same year.

Since 2016, KEYTEC has concentrated mainly in the development of a series of DALI signal products.  These DALI products from their software development to verification and mass production have been strictly controlled with each single DALI product tested and verified by special DALI test instrumentations before leaving the factory.  All products meet 100% Export standards achieving all international local safety standards.  All products can achieve true stroboscopic, standby power and other indicators making them the best choice for your requirements.


find more

years

established

+

staff

+

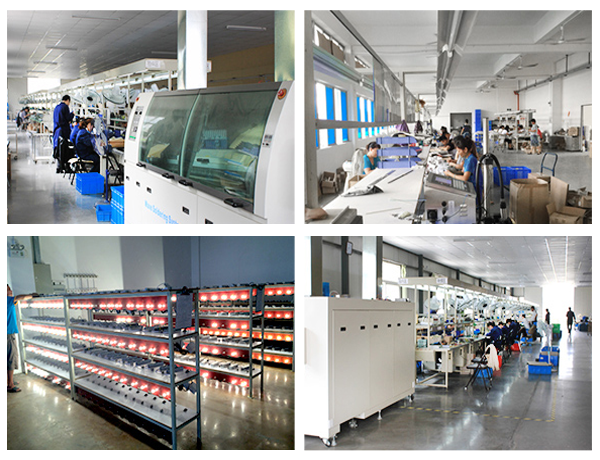

factory square

+

overseas Market

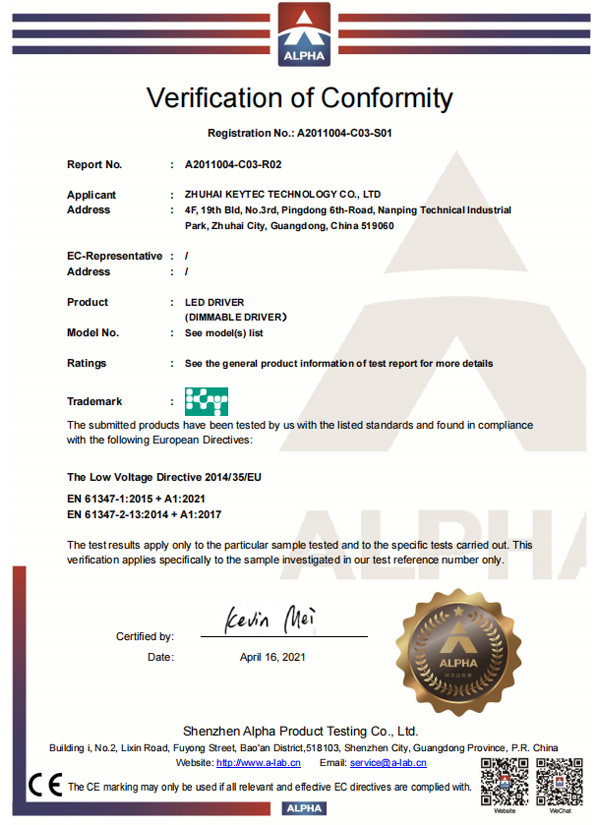

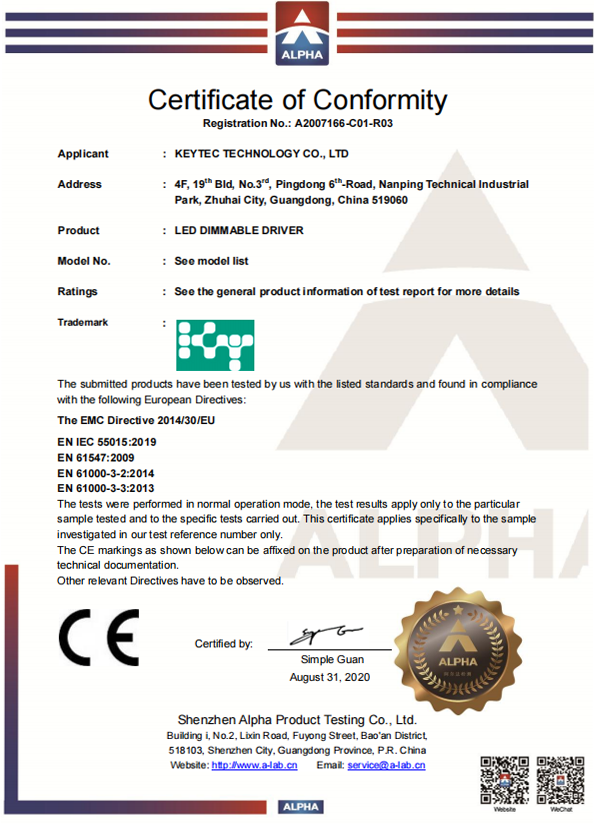

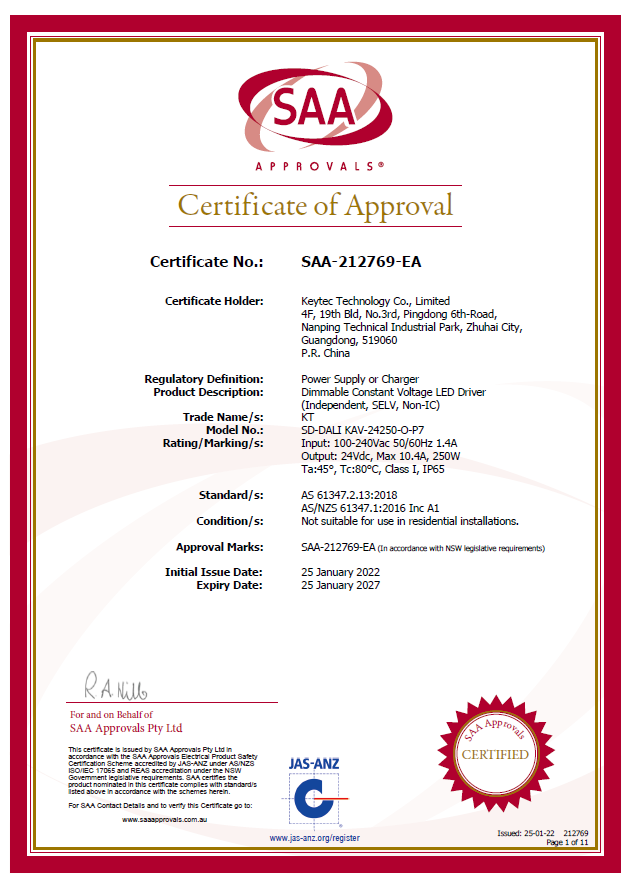

certificate

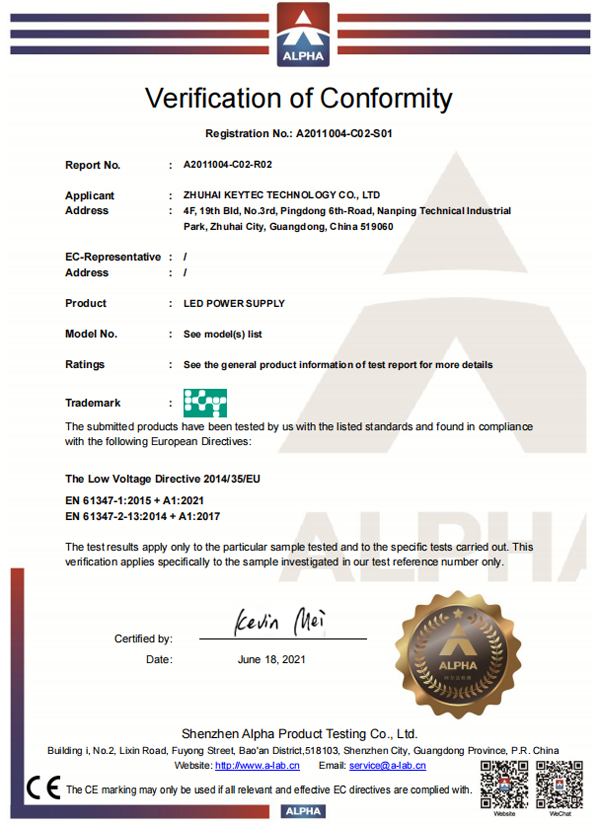

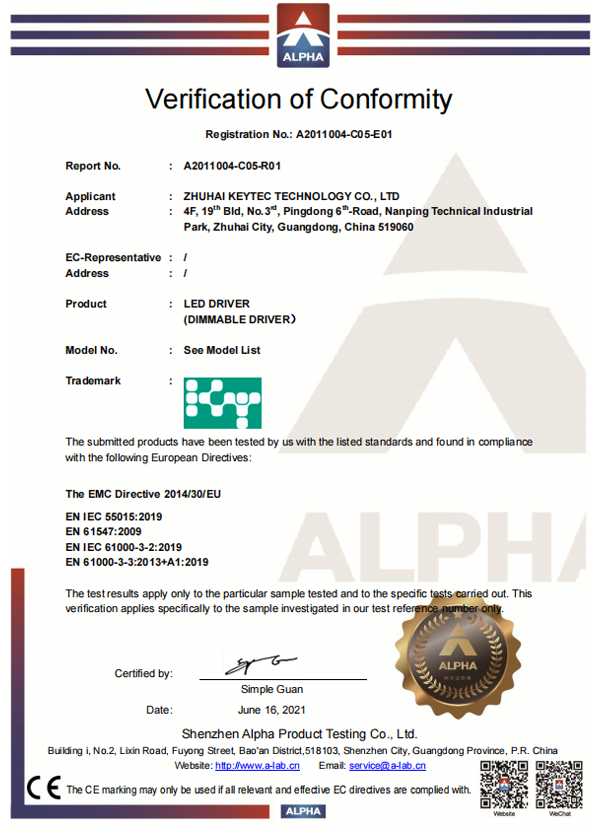

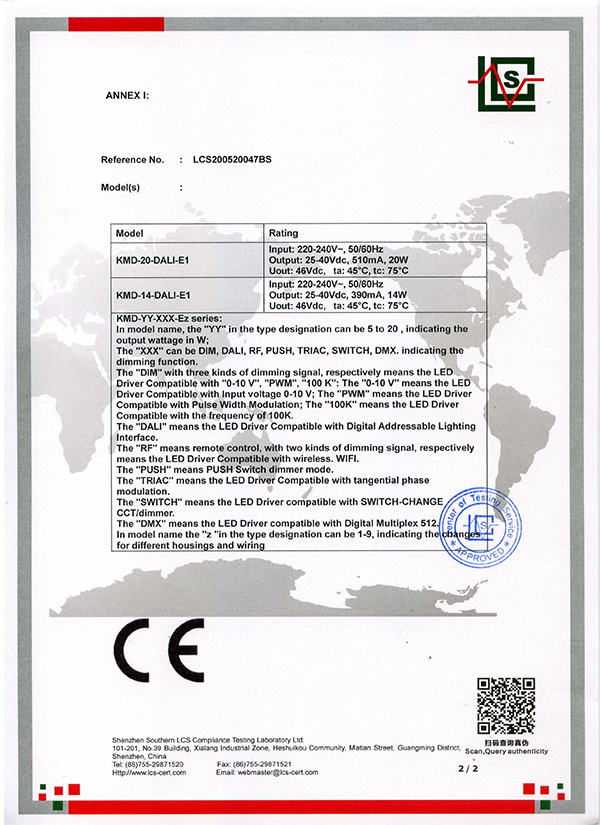

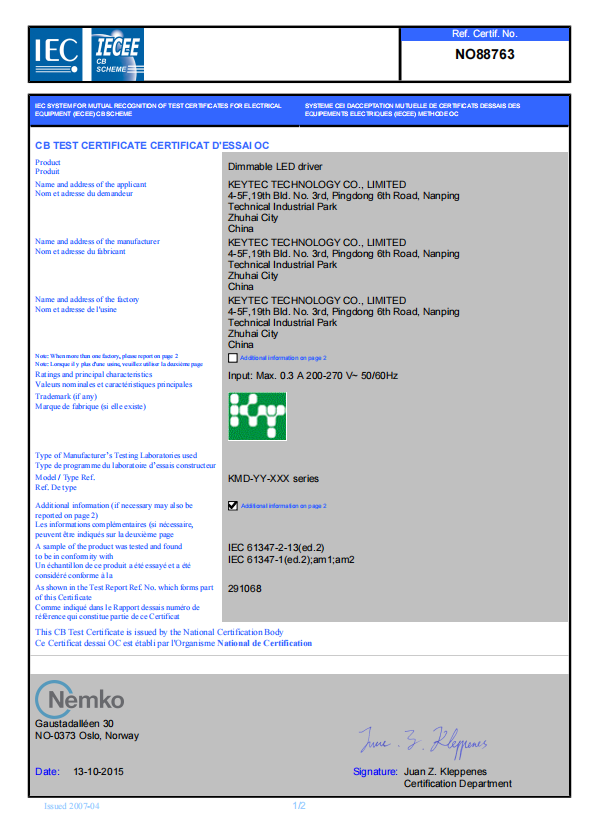

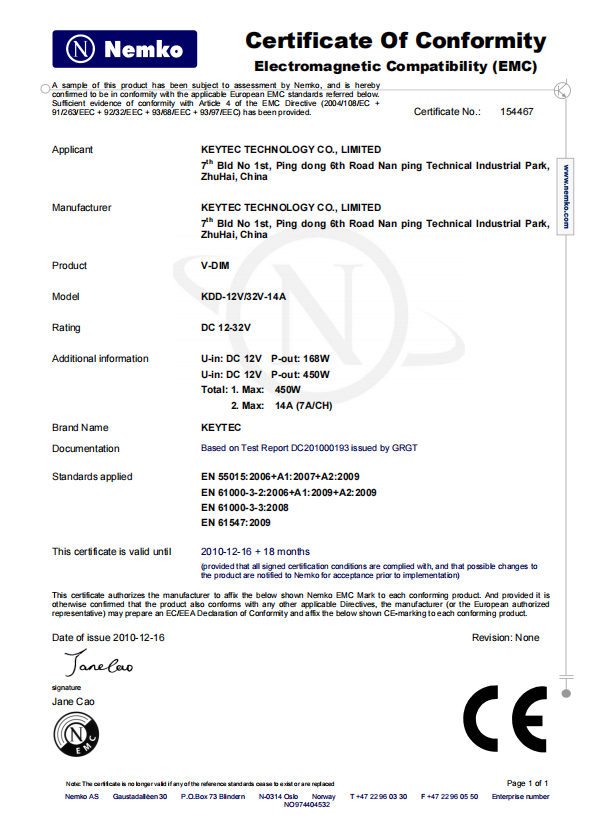

  • CC-DIMMABLE DRIVER -CB NEMKO

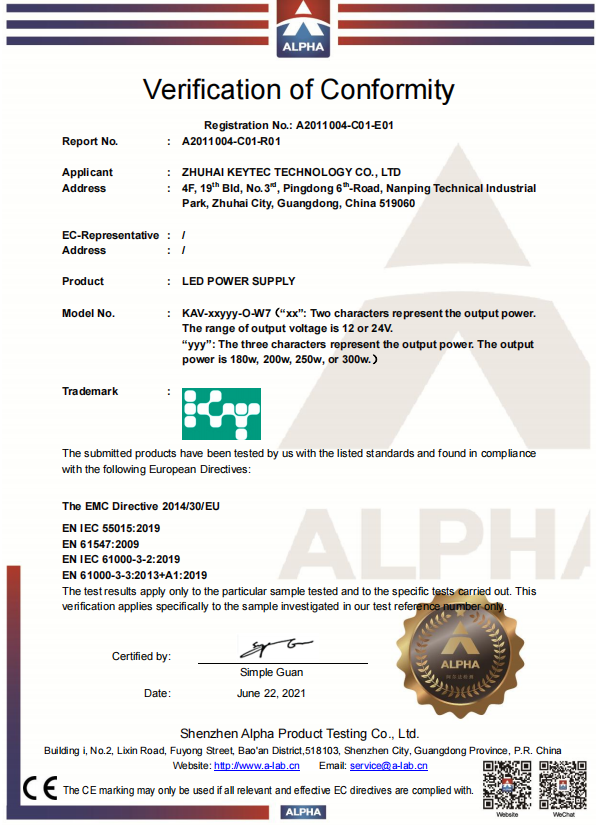

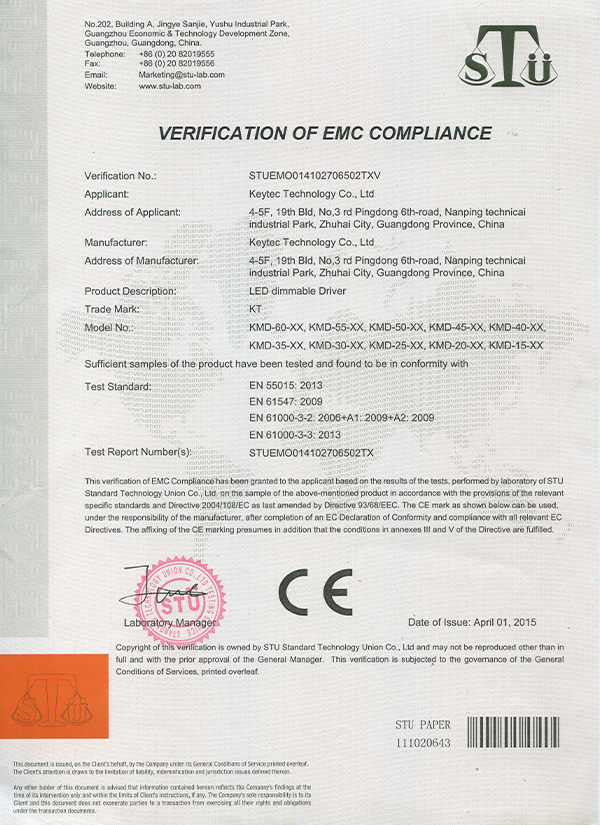

  • CE EMC-DIMMABLE DRIVER CV30-200W

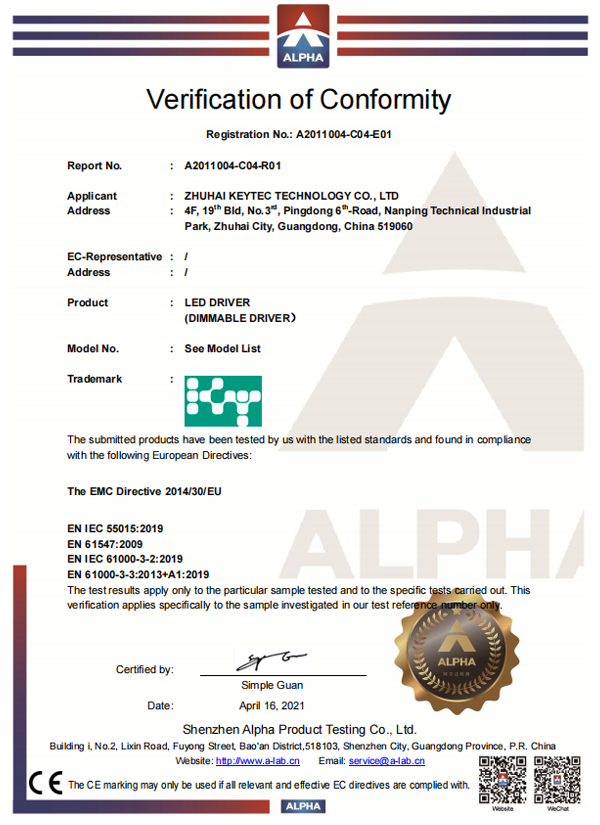

  • CE EMC-DRIVER

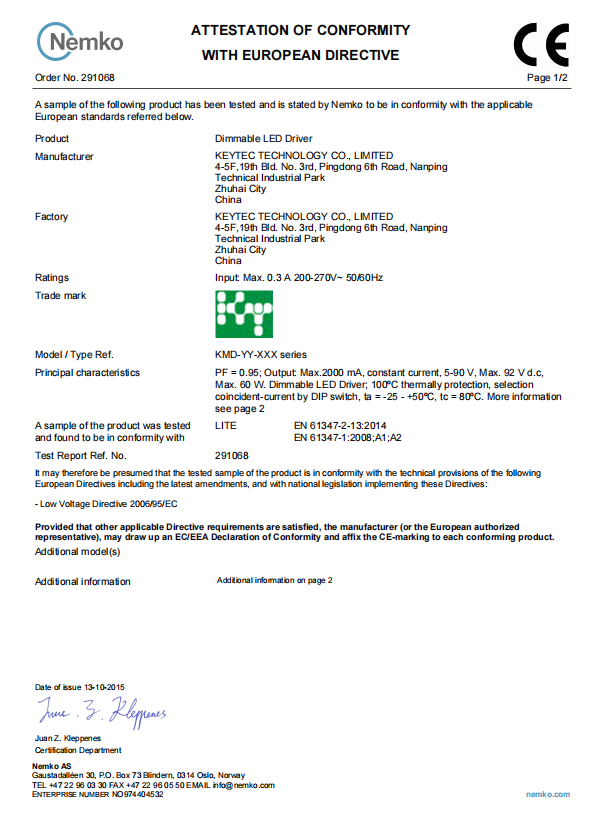

  • CE EMC-NEMKO

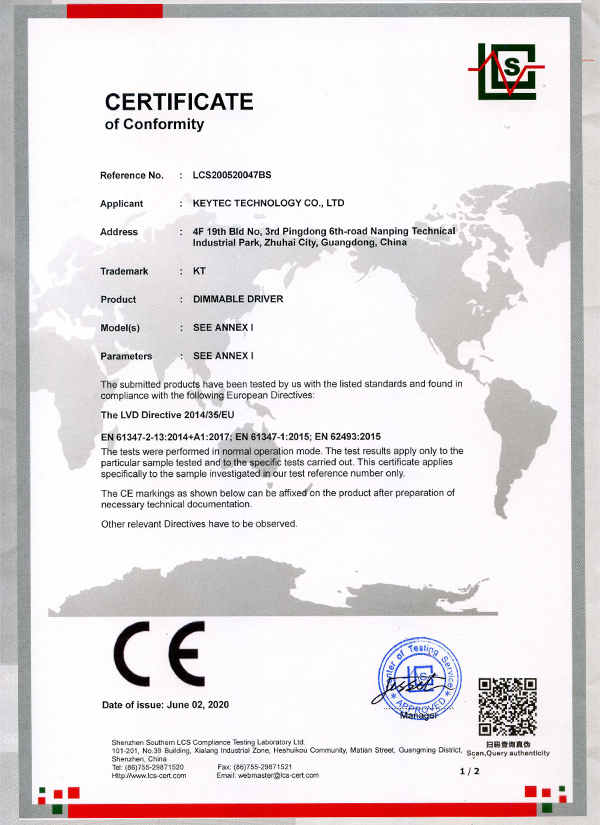

  • CE LVD- DIMMABLE DRIVER CV 30-200W
  • CE LVD- DRIAVE CV 30-200W

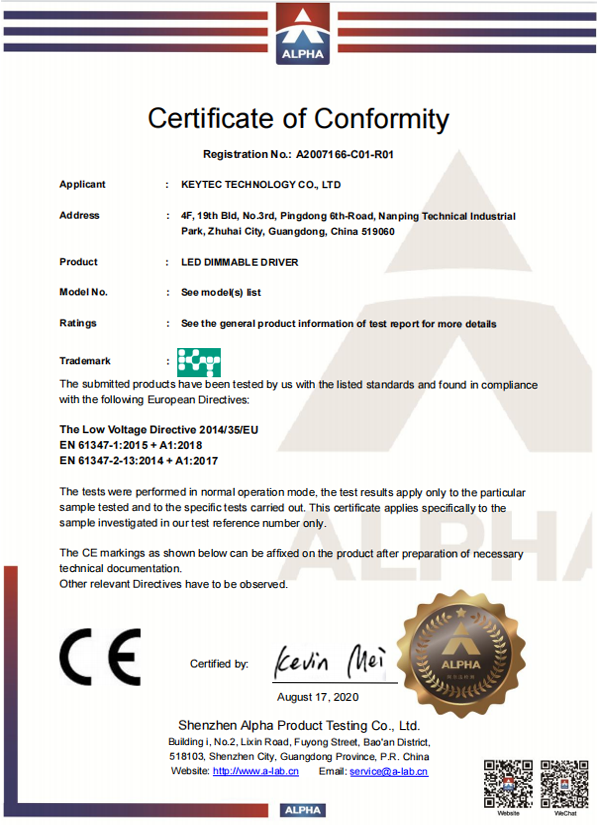

  • CE LVD- DRIVER Cert
  • CE LVD-DALI CC-DRIVER
  • CE LVD-DRIVER Cert
  • CE-DALI 14-20W CC
  • CE-EMC 180-300W CV
  • CE-EMC DALI DRIVER
  • CE-EMC DALI 14-20W CC
  • CE-EMC-DIMMABLE DRIVER CV
  • CE-LVD-DIMMABLE DRIVER

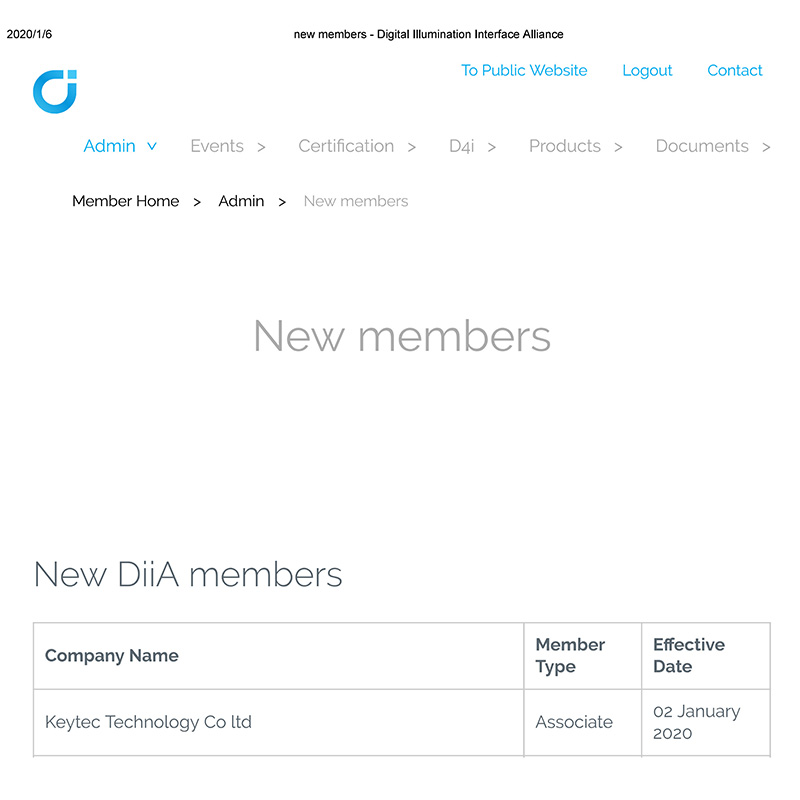

  • DALI Members
  • DESIGN PLUTS

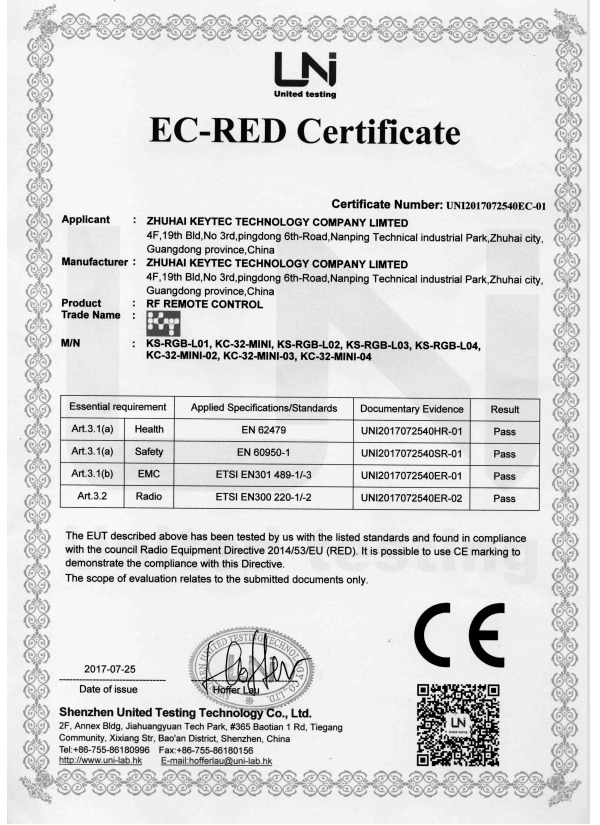

  • EC-RED
  • Global Manufacture Certificate-TUV

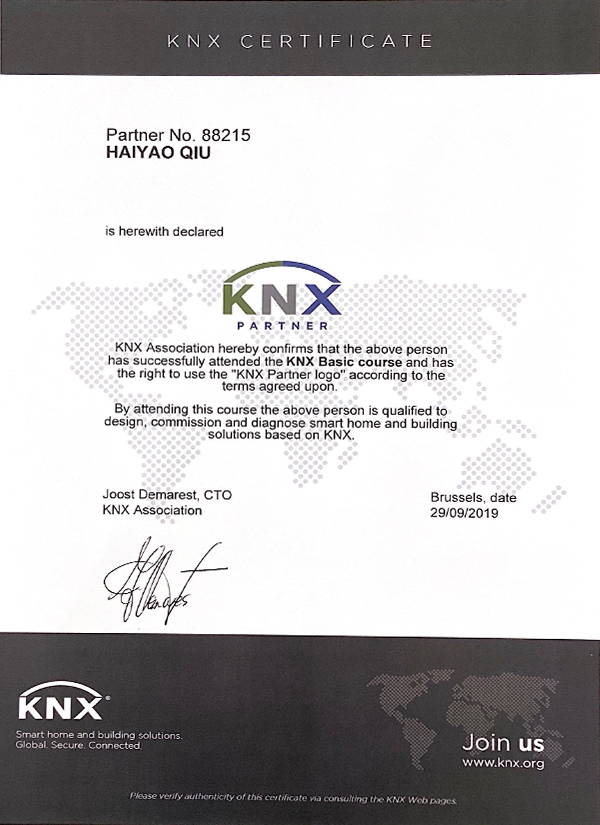

  • KNX

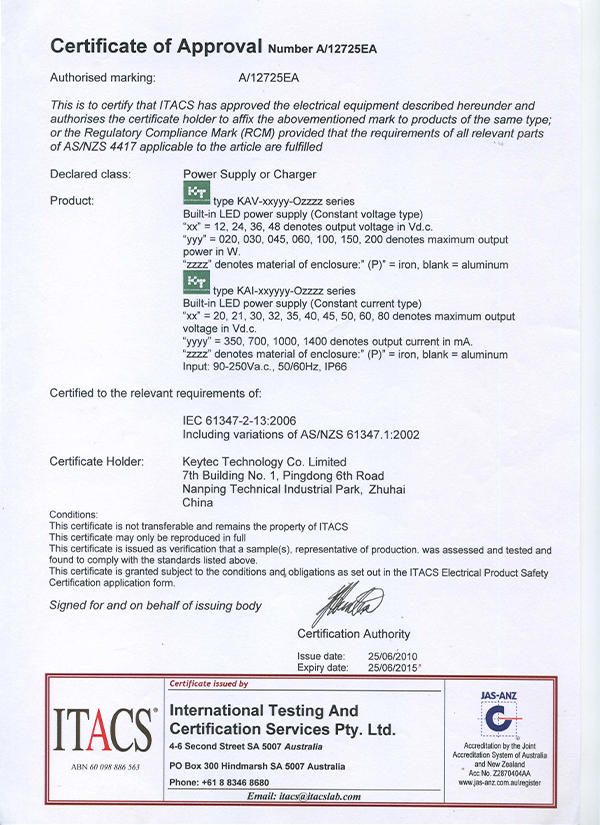

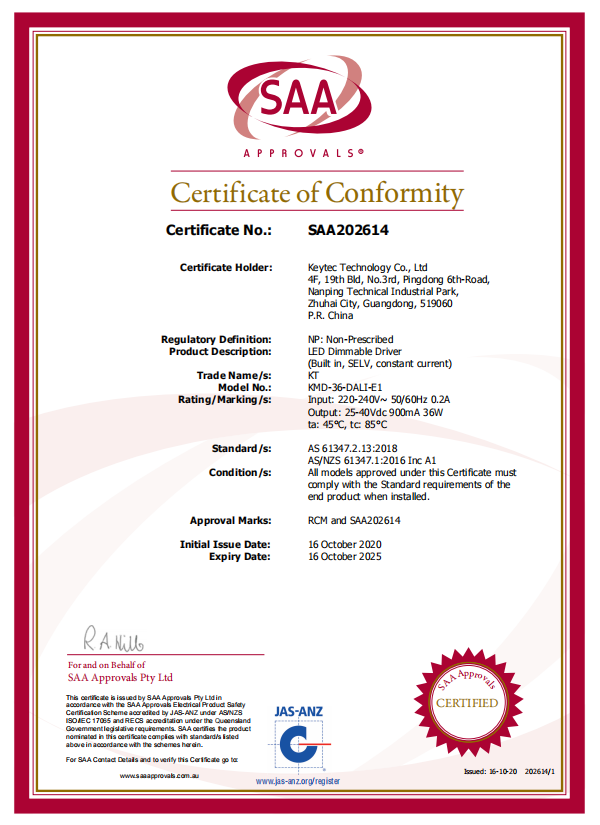

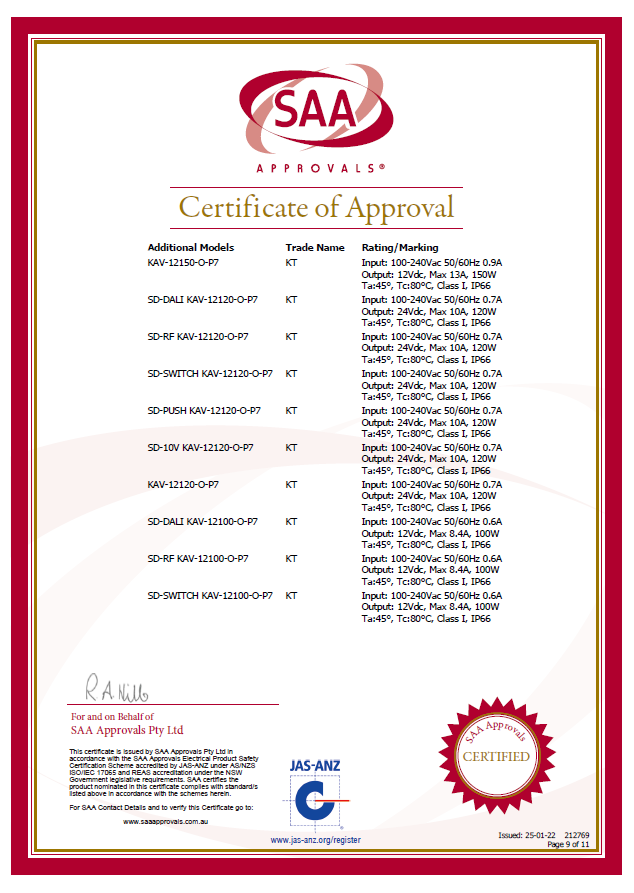

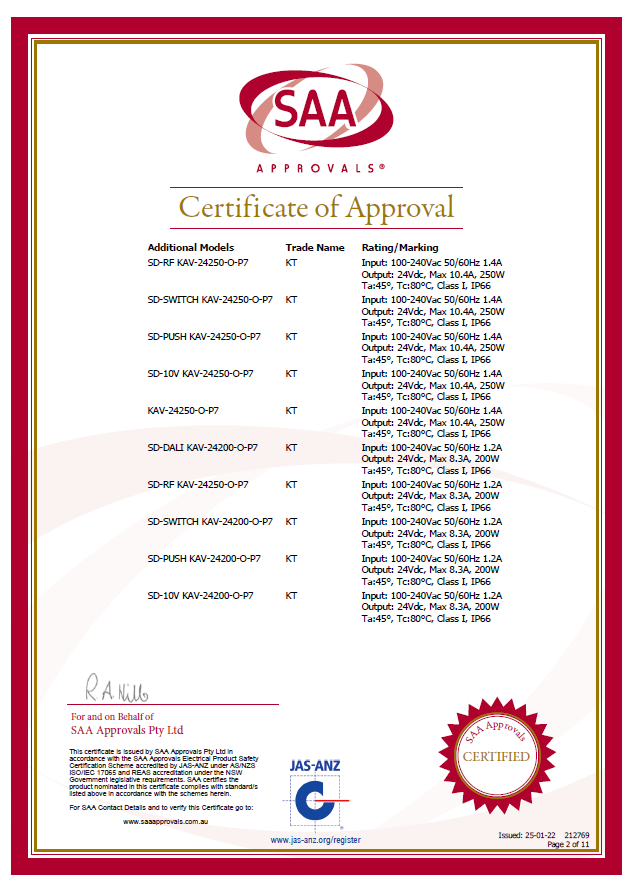

  • SAA DALI CC-7-36W

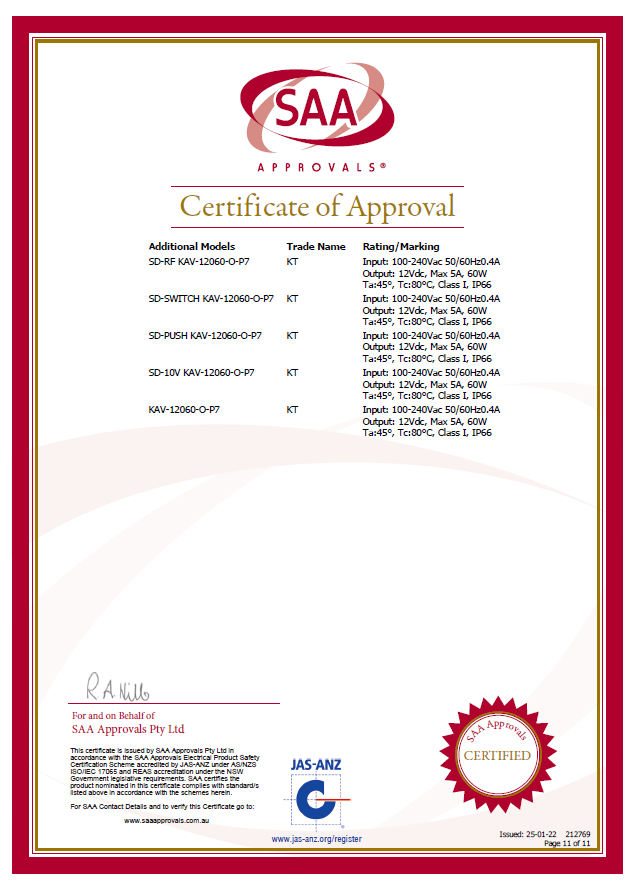

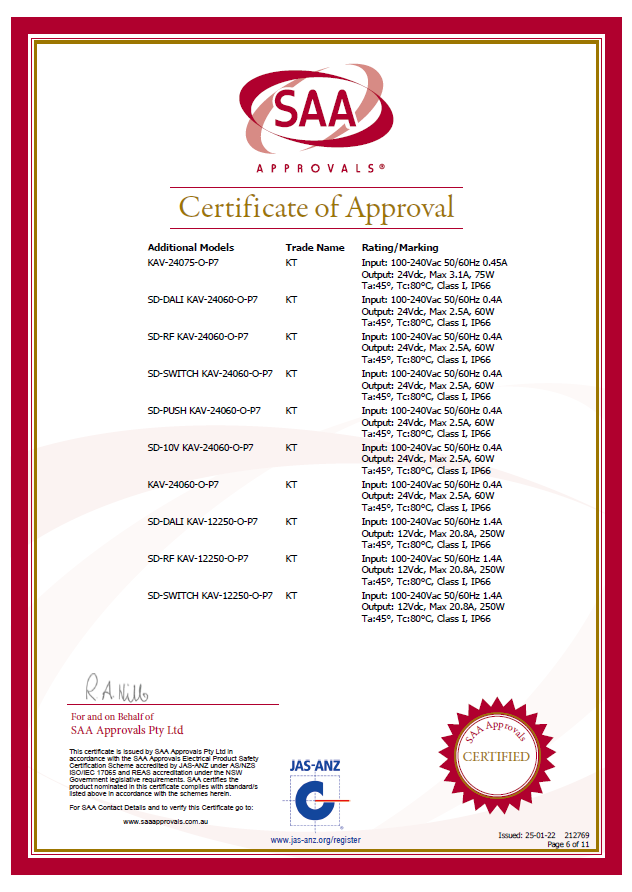

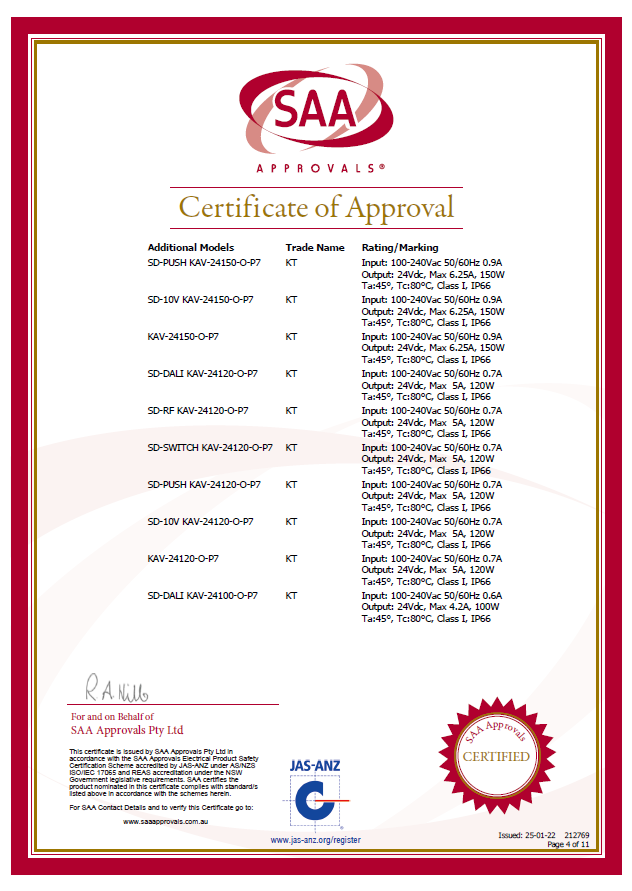

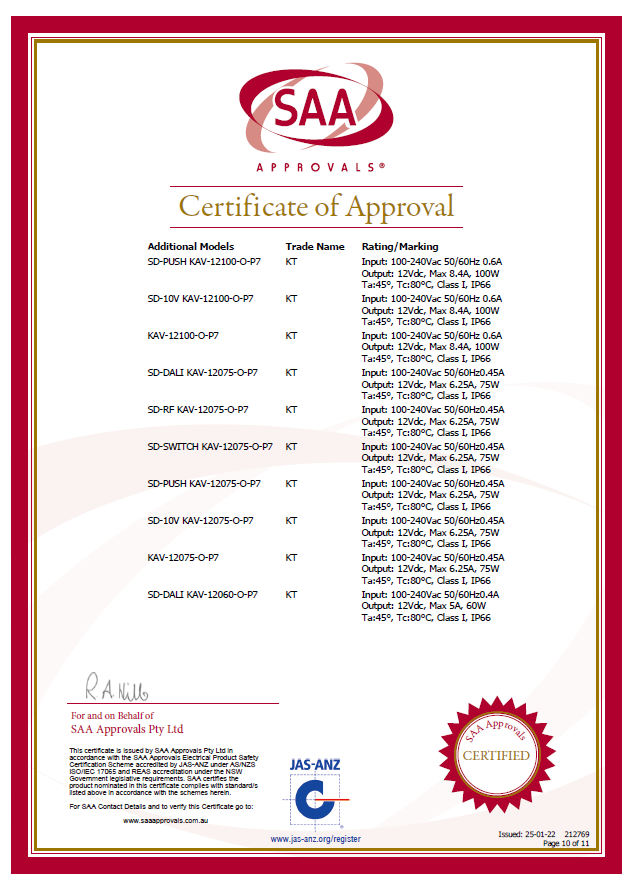

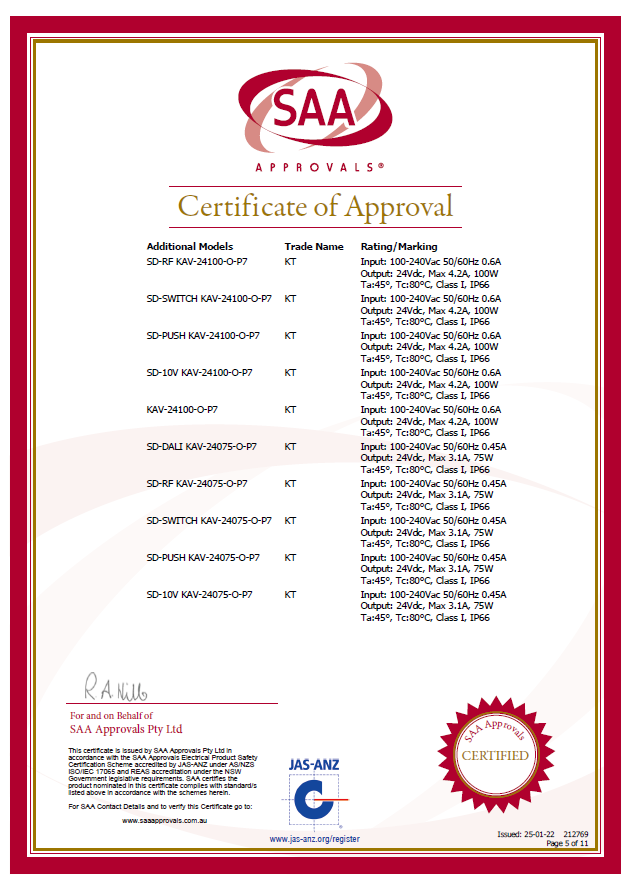

  • SAA 30-200W CV
  • SAA 60-150W CV
  • 15-60W CC-DRIVER CE

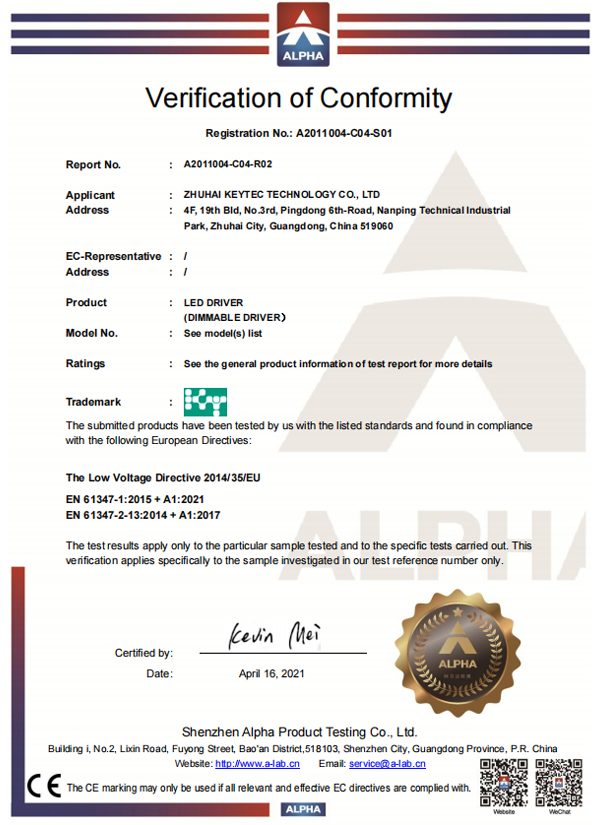

  • CC-DIMMABLE DRIVER -CE NEMKO

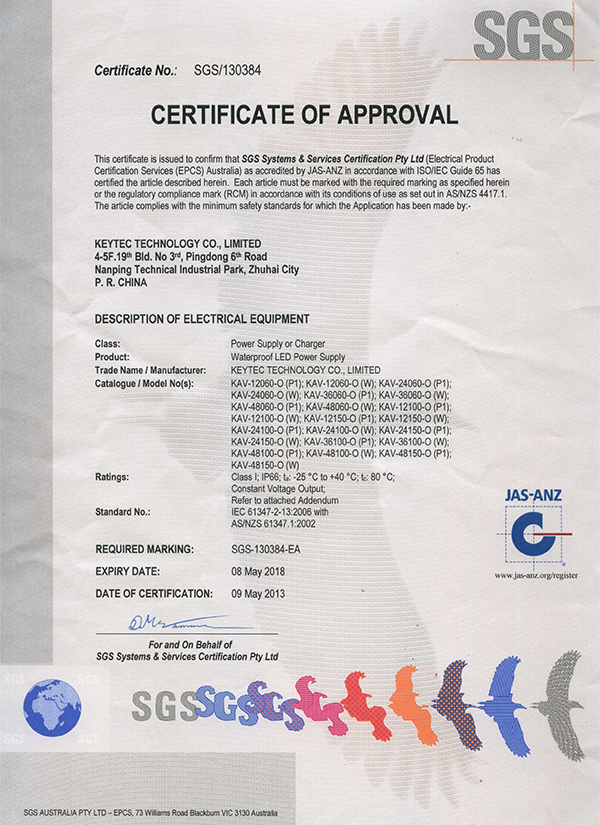

  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate
  • SAA Certificate

news

find more

customer distribution

about KEYTEC

KEYTEC was founded in 2006, with an independent research, development and production for LED power supply and intelligent controls products.

The first patented touch dimming colour-grading controller in 2008 was awarded DESIGN PLUS Prize at the 2008 LIGHT+BUILDING, Frankfurt Lighting Exhibition.

With the needs of intelligent society, KEYTEC combined with its own technical characteristics, the power supply and control of 2IN1 integration, forming a series of signal-full dimming power supplies: DALI, 0/1-10V, RF, TRIAC.

Almost the totality of products meet the latest European Union ERP standards and strobe requirements.

n reference to DALI, it is deeply involved with the design of a small-volume round housing to form KEYTEC unique characteristics.  The round housing provides better installation with its use on the more widely used lamps. As a DiiA member, all DALI products meet DALI 2, DT6 and DT8 protocols.


find more

contact us for the latest quotation

Add:

2F, Building 2, No. 4, Pingdong 2th-Road, Nanping Technical Industrial Park, Zhuhai City, Guangdong Province China

home About Keytec Products Results show News Download Contact Us

TEL: +86-756-6186399

TEL: +86-13928023499

Emai: info@keytecled.com
