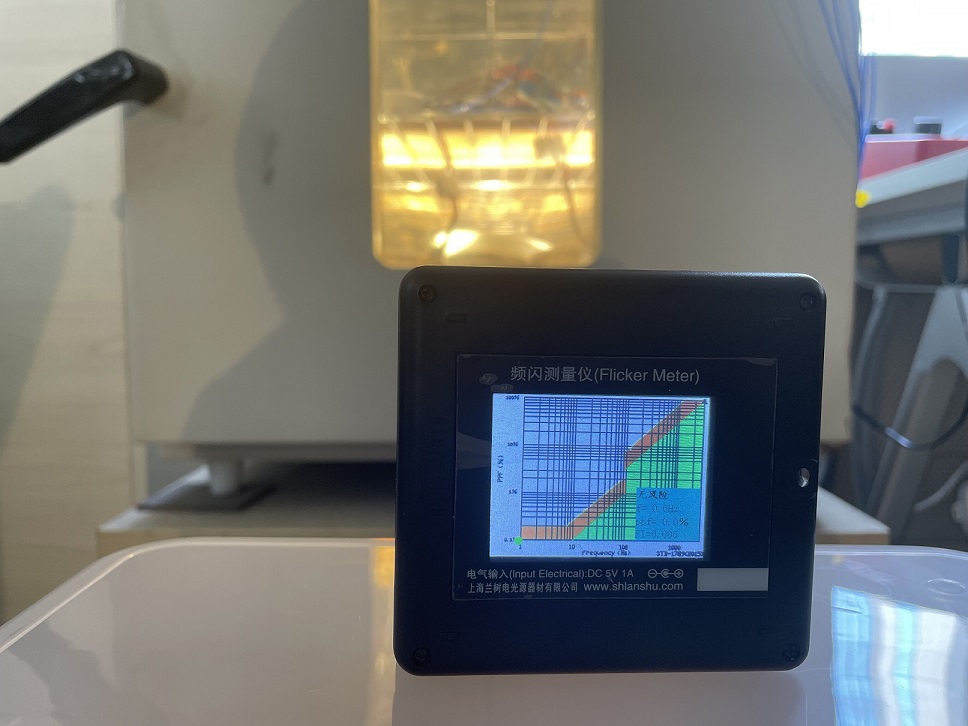

All products are Flicker free

      金属外壳电源

Metal Housing LED Driver

场地要求

              Site Requirements

①  电源要求安装在通风或利于散热的环境；

The product is requested to be installed in an environment with good heat dissipation.

② 电源与大型机器或大功率机器的交流电不共用同一个电箱，不支持大型机器与电源共用同一条AC线

The power supply and the AC power of large or high-power machinery must not share the same mains power

 box.  Large machinery  and the power supply cannot share the same AC cable

③ 电源不能安装在有积水低洼地带、不能长期泡在水中,必须要有防积水措施

 The LED driver should not be installed close or in contact with low-lying water or long term under water use (IP67).  Necessary measures  should be taken to prevent contact  with low-lying water.

④ 安装位置处于雷暴多发区域的，请做好防雷避雷的措施

                          If the installation position is in a lightning storm-prone area, take lightning protection measures

⑤ 电源使用环境温度范围：-40℃~+50℃

 The ambient temperature range of power supply: -40℃~+50℃

安装要求

                Installation Requirements

① 金属外壳必须采用可靠接地方式

The metal Housing  must be reliably grounded

② 电源的输入输出线连接要正确而且要牢固

The input and output lines of the power supply should be connected correctly and firmly

③ 多个电源放一起使用时，间隔应＞50cm

When multiple power supplies are used together, the interval distance should be > 50cm

④ 电源处于长期使用状态（一天使用超过8小时），建议使用电源额定功率的80%负载以内。

       If the power supply is in long-term use (more than 8 hours a day), it is recommended that the power supply

 be loaded with a maximum 80% of the rated power

⑤ 用于固定电源的材料选用有助于散热的材料，如金属材料、铝材料

Surface used for fixing the power supply  should be material that helps to dissipate heat, such as a metal

surface or an aluminium surface

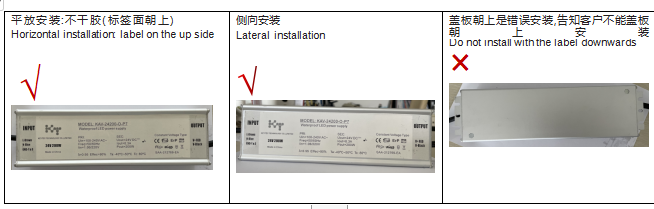

⑥ 电源安装方向：机壳不干胶(标签)面朝上平放或侧向安装,同时固定电源通过两边的安装孔

·  Installation direction: Horizontal and vertical installation are both ok, only make sure the label is on upside.

· At the same time, fix the power supply through the mounting holes at both ends

调光功能使用要求

Dimming Function Requirements

①　根据电源提供的信号，连接对应的调光信号

Connect the corresponding dimming signal according to the signal provided by the power supply

②　连接的信号必须是符合行业标准，经过过滤的、干净的、没有纹波干扰的信号

The connected signal must be filtered, clean and free of ripple interference in accordance with industry standards

③　可控硅电源在使用前需要与可控硅调光器做充分配合测试，不同品牌的控硅调光器调光效果有差异

TRIAC Driver needs to be fully tested with SCR dimmer before use. Different brands of SCR dimmers have

different dimming effects

④　调光电源内置低功耗设计,关闭灯光通过系统进行控制，不直接关断交流电

The dimmable driver with built-in low power consumption design. Turning off  the light is controlled by the

system without turning off the AC power directly

⑤　输出线为多组时，每组的负载要完全一致

If there are multiple output lines, the load in each group must be the same

                 金属外壳电源清单:

Metal Housing LED Driver List

   塑胶外壳电源

Plastic Housing LED Driver

场地要求

              Site Requirements

①  电源要求安装在通风或利于散热的环境；

The product is requested to be installed in an environment with good heat dissipation.

② 电源与大型机器或大功率机器的交流电不共用同一个电箱，不支持大型机器与电源共用同一条AC线

The power supply and the AC power of large or high-power machinery must not share the same mains power

 box.  Large machinery and the power supply cannot share the same AC cable

③ IP65-66的电源不能安装在有积水低洼地带、不能泡在水中,必须要有防积水措施

 The LED driver should not be installed close or in contact with low-lying water or under water (IP65-66).  Necessary measures should be taken to prevent contact with low-lying water.

④ IP20 电源需要安装在室内，不靠近水源及火源。需要做到防水、防潮的空间，当在室外使用时

                               IP20 power supply should be installed indoors, away from water sources and fire sources.  Necessary

measures should be taken to ensure a waterproof, moisture-proof installation area, when used outdoors

⑤ 安装位置处于雷暴多发区域的，请做好防雷避雷的措施

                          If the installation position is in a lightning storm-prone area, take lightning protection measures

⑥ 电源使用环境温度范围：-25℃~45℃ ；H系列电源，使用环境温度范围： --45℃~+45℃

The ambient temperature range of driver: -25℃~+45℃；The ambient temperature range of  H series driver ：

-45℃~+45℃，

⑦ 家中使用的遥控产品，需符合电磁干扰的标准，防止该信号源对电源的干扰

The remote control products used in the home should comply with the standards of electromagnetic interference to prevent the interference of the signal source to the power supply

安装要求

                  Installation Requirements

① 电源与灯具之间保持＞20CM的距离，避免灯具热量直接传给电源

Any metal enclosure must be reliably grounded and avoid direct heat from the lamp to the Driver

② 电源的输入输出线连接要正确而且要牢固

The input and output lines of the Driver should be connected correctly and firmly

③ 多个电源放一起使用时，间隔应＞50cm

When multiple drivers are used together, the interval distance should be > 50cm

④ 电源处于长期使用状态（一天使用超过8小时），建议使用电源额定功率的80%负载以内。

       If the power supply is in long-term use (more than 8 hours a day), it is recommended that the driver

 be loaded with a maximum 80% of the rated power

⑤ 用于固定电源的材料选用有助于散热的材料，如金属材料、铝材料

Surface used for fixing the power supply  should be material that helps to dissipate heat, such as a

Metal  surface or an aluminium surface

⑥ 电源安装方向：产品平放安装,同时固定电源通过安装孔,如果有安装孔

·  Installation direction: Horizontal  installation is  okay  at  the same time  , fix the power supply through the mounting holes

·          at both ends if there are mounting holes

调光功能使用要求

Dimming Function Requirements

①　根据电源提供的信号，连接对应的调光信号

Connect the corresponding dimming signal according to the signal provided by the power supply

②　连接的信号必须是符合行业标准，经过过滤的、干净的、没有纹波干扰的信号

The connected signal must be filtered, clean and free of ripple interference in accordance with industry standards

③　可控硅电源在使用前需要与可控硅调光器做充分配合测试，不同品牌的控硅调光器调光效果有差异

TRIAC DRIVER needs to be fully tested with SCR dimmer before use. Different brands of SCR dimmers have

different dimming effects

④　调光电源内置低功耗设计,关闭灯光通过系统进行控制，不直接关断交流电

The dimmable  driver with built-in low power consumption design. Turning off  the light is controlled by the

system without turning off the AC power directly

⑤　输出线为多组时，每组的负载要完全一致

If there are multiple output lines, the load in each group must be the same

                 塑胶外壳电源清单:

Plastic  Housing LED Driver List
